AIR CONDITIONER COMPRESSOR, HOSE (#1006-) D85MS-15 S/N 1006-UP Komatsu


OK request send
BULLDOZERS
D85MS-15 S/N 1006-UP
AIR CONDITIONER COMPRESSOR
AIR CONDITIONER COMPRESSOR, COMPRESSOR (#1006-)
AIR CONDITIONER COMPRESSOR, COMPRESSOR (#1006-)
b005001
AIR CONDITIONER COMPRESSOR, RECEIVER TANK (#1006-)
AIR CONDITIONER COMPRESSOR, RECEIVER TANK (#1006-)
b005003

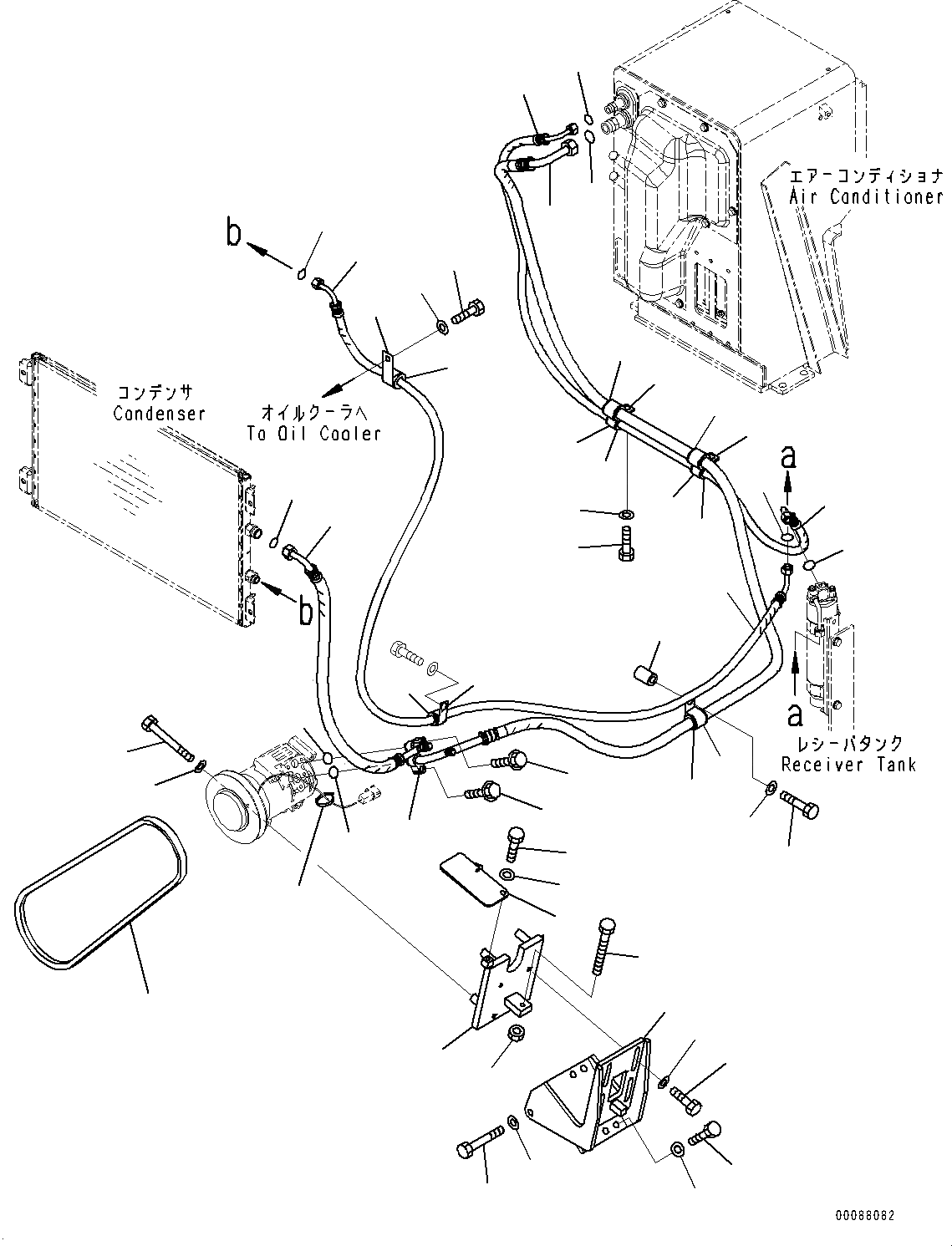

AIR CONDITIONER COMPRESSOR, HOSE (#1006-)

D85MS-15 S/N 1006-UP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
21
22
34
35
32
33
29
30
36
37
40
41
42
29
32
33
39
38
33
32
35
34
28
27
22
21
36
37
19
30
17
23
26
25
24
20
31
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   154-Z11-7112   [1]   Bracket Komatsu China
    ["SN: 1006-UP"]
2.   01010-81030   [4]   Bolt Komatsu OEM 0.03 kg.
    ["SN: 1006-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
3.   01643-31032   [4]   Washer Komatsu 0.054 kg.
    ["SN: 1006-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
4.   01010-81085   [1]   Bolt Komatsu 0.063 kg.
    ["SN: 1006-UP"]
6.   154-Z11-7122   [1]   Bracket Komatsu China
    ["SN: 1006-UP"]
9.   01010-80875   [4]   Bolt Komatsu 0.034 kg.
    ["SN: 1006-UP"] analogs:["801015552", "0101030875"]
10.   01643-30823   [4]   Washer Komatsu 0.004 kg.
    ["SN: 1006-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
11.   154-Z11-7140   [1]   Cover Komatsu China
    ["SN: 1006-UP"]
12.   01010-80816   [1]   Bolt Komatsu 0.022 kg.
    ["SN: 1006-UP"] analogs:["0101050816", "801015084"]
14.   130-Z79-1740   [1]   Bolt Komatsu China
    ["SN: 1006-UP"]
15.   01580-11008   [1]   Nut Komatsu 0.011 kg.
    ["SN: 1006-UP"]
16.   04120-21756   [1]   V-belt Komatsu 0.314 kg.
    ["SN: 1006-UP"]
17.   08034-20519   [1]   Band Komatsu 0.001 kg.
    ["SN: 1006-UP"] analogs:["2260611130", "885180010"]
18.   154-969-7370   [1]   Hose Komatsu China
    ["SN: 1006-UP"]
   19.   20Y-979-3140   [2]   O-ring Komatsu 0.001 kg.
    ["SN: 1006-UP"] analogs:["ND9491420020"]
20.   01435-00630   [1]   Bolt Komatsu 0.064 kg.
    ["SN: 1006-UP"]
21.   154-911-7431   [1]   Hose Komatsu China
    ["SN: 1006-UP"]
   22.   20Y-979-3150   [2]   O-ring Komatsu 0.001 kg.
    ["SN: 1006-UP"] analogs:["ND9491420010"]
23.   04434-52112   [1]   Clip Komatsu 0.03 kg.
    ["SN: 1006-UP"]
24.   07095-20314   [1]   Cushion Komatsu 0.011 kg.
    ["SN: 1006-UP"]
25.   01010-81230   [1]   Bolt Komatsu 0.043 kg.
    ["SN: 1006-UP"] analogs:["0101051230", "01010B1230"]
26.   01643-31232   [1]   Washer Komatsu 0.027 kg.
    ["SN: 1006-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
29.   154-911-7441   [1]   Hose Komatsu China
    ["SN: 1006-UP"]
   30.   20Y-979-3130   [2]   O-ring Komatsu 0.001 kg.
    ["SN: 1006-UP"] analogs:["ND9491420030"]
32.   04434-52712   [5]   Clip Komatsu 0.036 kg.
    ["SN: 1006-UP"]
33.   07095-20420   [5]   Cushion Komatsu 0.015 kg.
    ["SN: 1006-UP"]
34.   154-911-7411   [1]   Hose Komatsu China
    ["SN: 1006-UP"]
40.   581-60-17860   [1]   Spacer Komatsu China
    ["SN: 1006-UP"]
41.   01011-81210   [1]   Bolt Komatsu 0.112 kg.
    ["SN: 1006-UP"] analogs:["801015584", "0101151210"]
