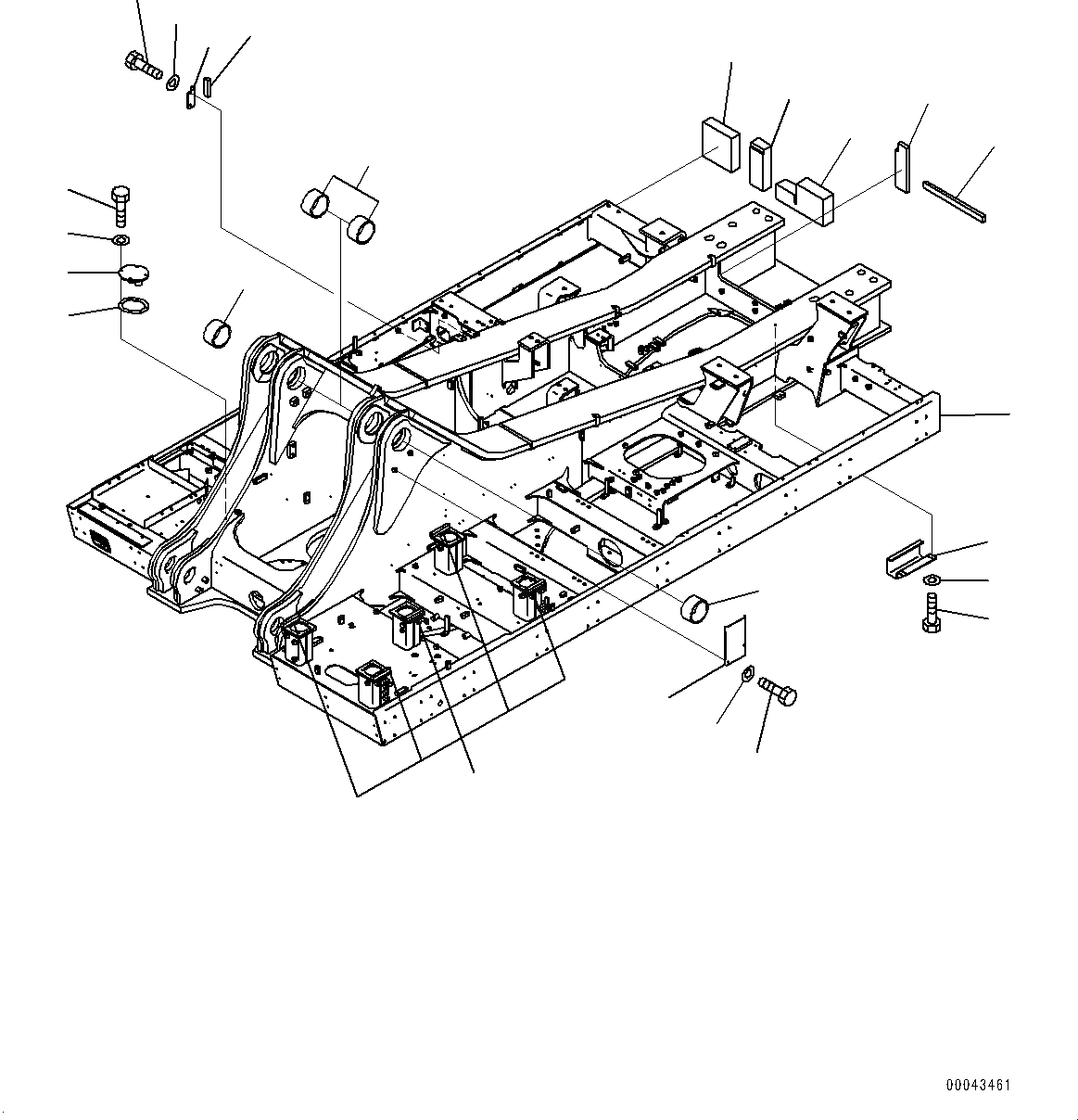

REVOLVING FRAME (#30158-30209)
5
2
14
4
11
3
6
2
10
8
12
20
22
21
19
7
9
2
13
15
17
16
18
1
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 21N-46-41102 | [1] | Frame Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 2. | 21N-46-31261 | [4] | Bushing Komatsu | 4.08 kg. |
| ["SN: 30158-30209"] | ||||
| 3. | 21N-46-31211 | [1] | Cover Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 4. | 21N-46-31230 | [1] | Gasket Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 5. | 01010-81230 | [4] | Bolt Komatsu | 0.043 kg. |
| ["SN: 30158-30209"] analogs:["0101051230", "01010B1230"] | ||||
| 6. | 01643-31232 | [4] | Washer Komatsu | 0.027 kg. |
| ["SN: 30158-30209"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 7. | 21N-46-37321 | [1] | Bracket Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 8. | 01010-81225 | [4] | Bolt Komatsu | 0.074 kg. |
| ["SN: 30158-30209"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 10. | 21N-46-37280 | [1] | Plate Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 11. | 01010-81220 | [2] | Bolt Komatsu | 0.032 kg. |
| ["SN: 30158-30209"] analogs:["0101051220"] | ||||
| 13. | 21N-03-32171 | [1] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 14. | 21N-03-32192 | [1] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 15. | 21N-03-32331 | [1] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 16. | 21N-46-41190 | [1] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 17. | 21N-46-37420 | [1] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 18. | 21N-46-37330 | [5] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 19. | 21N-03-41950 | [1] | Cover Komatsu China | |
| ["SN: 30158-30209"] | ||||
| 20. | 21N-03-41960 | [1] | Sheet Komatsu China | |
| ["SN: 30158-30209"] | ||||
