COOLING SYSTEM, COVER (#65001-) PC600LC-8E0 S/N 65001-UP Komatsu


OK request send
EXCAVATORS
PC600LC-8E0 S/N 65001-UP
COOLING SYSTEM
COOLING SYSTEM, RELATED PARTS (4/4) (#65001-)
COOLING SYSTEM, RELATED PARTS (4/4) (#65001-)
c001013
COOLING SYSTEM, RADIATOR PIPING (#65001-)
COOLING SYSTEM, RADIATOR PIPING (#65001-)
c001012
COOLING SYSTEM, FAN MOTOR PIPING (#65047-)
COOLING SYSTEM, FAN MOTOR PIPING (#65047-)
c001011
COOLING SYSTEM, STAY AND AIR PIPING (#65001-)
COOLING SYSTEM, STAY AND AIR PIPING (#65001-)
c001015
COOLING SYSTEM, SENSOR AND OIL COOLER TUBE (#65001-)
COOLING SYSTEM, SENSOR AND OIL COOLER TUBE (#65001-)
c001016

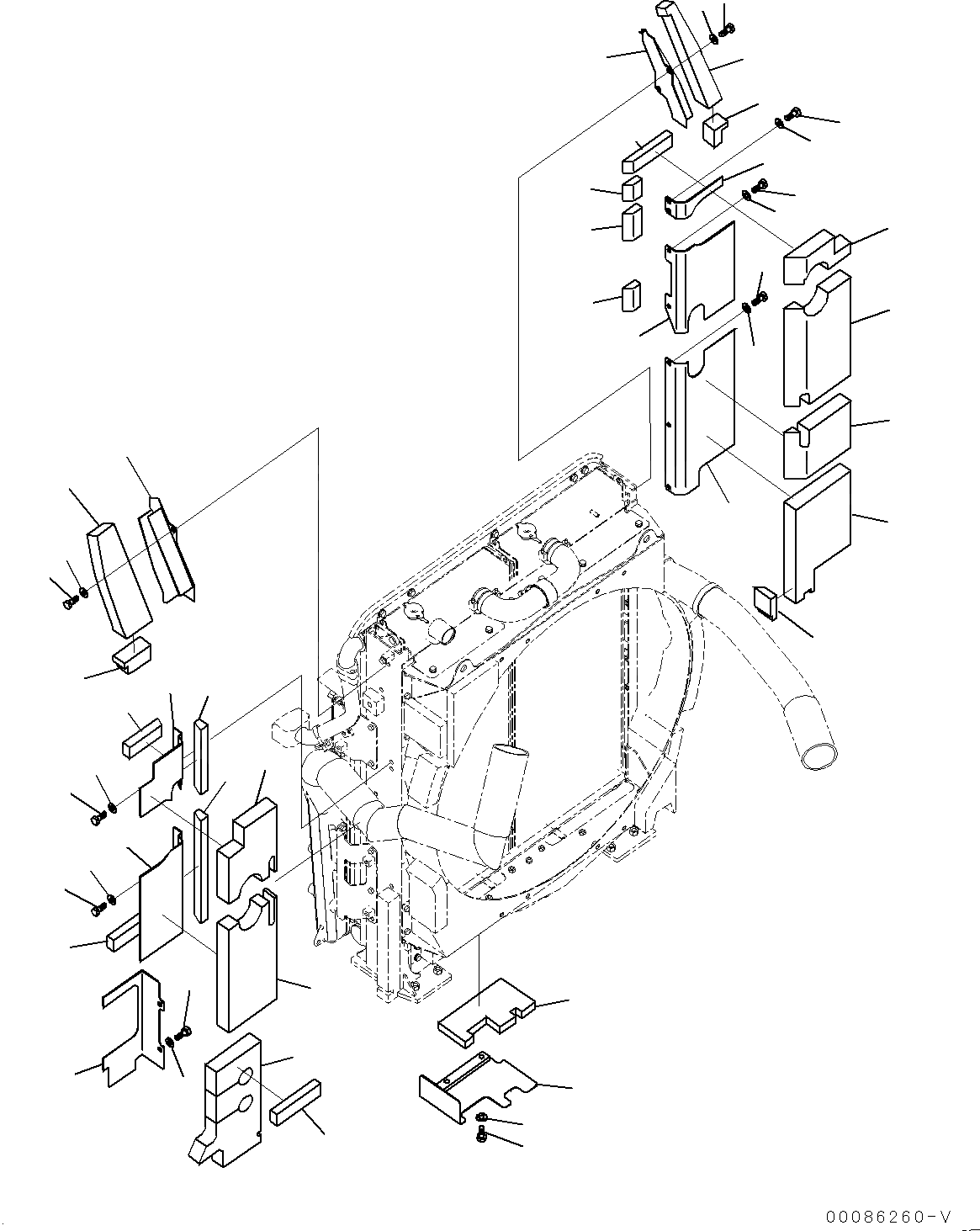

COOLING SYSTEM, COVER (#65001-)

PC600LC-8E0 S/N 65001-UP
7
8
6
3
1
17
18
19
16
21
20
23
24
25
22
27
26
12
13
11
15
14
41
42
43
40
45
44
35
36
37
34
29
31
30
28
39
38
33
32
5
4
10
9
47
46
49
48
2
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   21M-03-21632   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   2.   21M-03-21652   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   3.   21M-03-22560   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
4.   01010-81225   [2]   Bolt Komatsu 0.074 kg.
    ["SN: 65001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
5.   01643-31232   [2]   Washer Komatsu 0.027 kg.
    ["SN: 65001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
6.   21M-03-21641   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   7.   21M-03-21661   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   8.   21M-03-22570   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
11.   21M-03-22311   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   12.   21M-03-22371   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   13.   21M-03-22550   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
16.   21M-03-22321   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   17.   21M-03-22381   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   18.   21M-03-22391   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   19.   21M-03-22531   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
22.   21M-03-22331   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   23.   21M-03-22411   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   24.   21M-03-22421   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   25.   21M-03-22541   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
28.   21M-03-32340   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   29.   21M-03-22431   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   30.   21M-03-22440   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   31.   21M-03-22451   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
34.   21M-03-22351   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   35.   21M-03-22461   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   36.   21M-03-22470   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   37.   21M-03-22480   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
40.   21M-03-22361   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   41.   21M-03-22491   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   42.   21M-03-22510   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
   43.   21M-03-22521   [1]   Seal Komatsu China
    ["SN: 65001-UP"]
46.   21M-03-22211   [1]   Cover Komatsu China
    ["SN: 65001-UP"]
   47.   21M-03-22230   [1]   Sheet Komatsu China
    ["SN: 65001-UP"]
48.   01010-81240   [2]   Bolt Komatsu 0.052 kg.
    ["SN: 65001-UP"] analogs:["801015573", "0101051240"]
