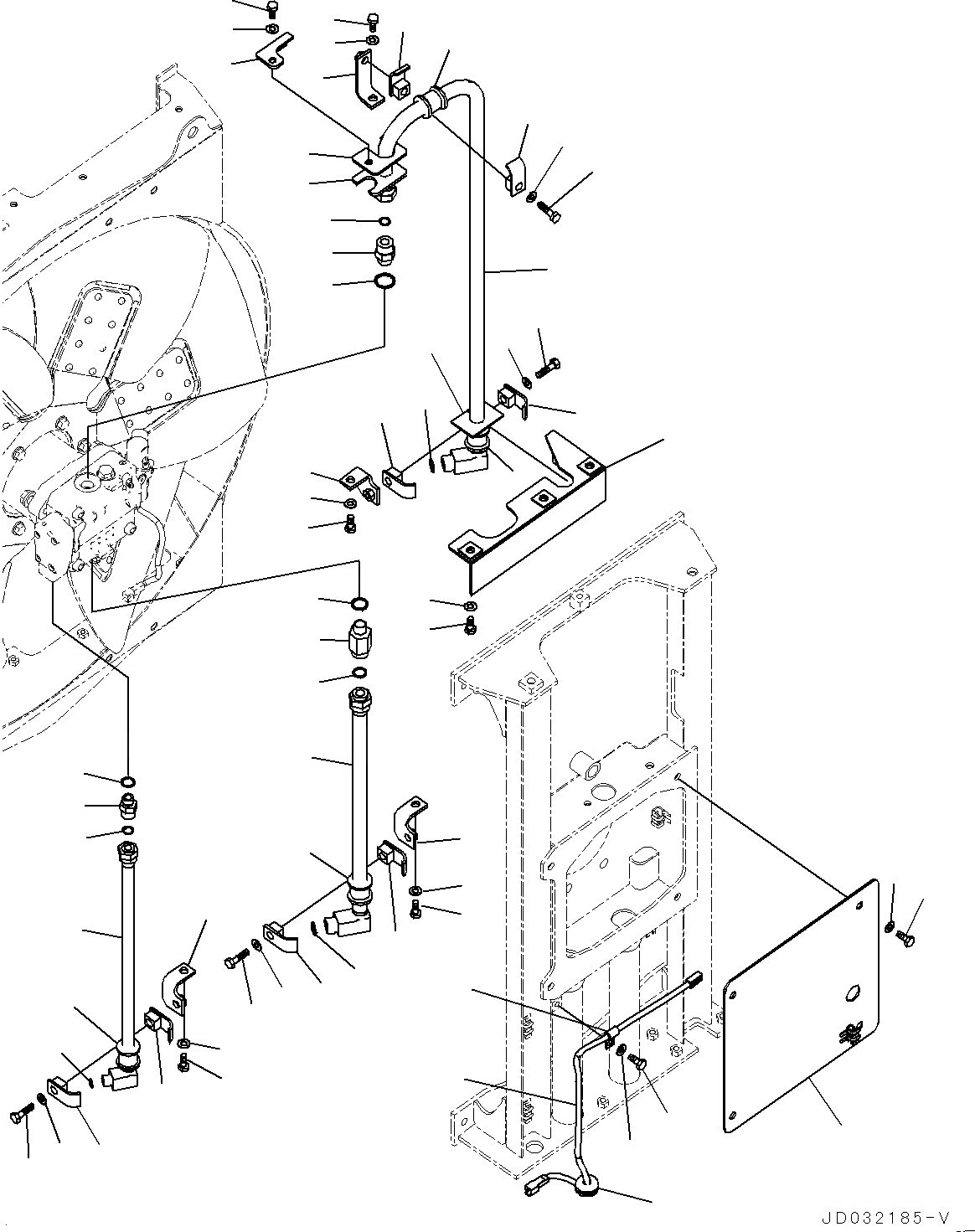

COOLING SYSTEM, FAN MOTOR PIPING (#65001-65049)
4
2
1
3
3
23
35
2
1
7
7
34
33
22
21
6
6
6
6
8
9
9
8
27
39
38
38
45
47
46
18
17
16
19
10
11
54
53
30
42
40
28
48
49
50
31
43
52
13
14
56
55
51
44
32
41
29
36
37
24
25
15
12
5
4
20
26
26
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 21M-03-22131 | [1] | Tube Komatsu China | |
| ["SN: 65001-@"] | ||||
| 2. | 02896-61018 | [1] | O-ring Komatsu | 0.24 kg. |
| ["SN: 65001-@"] | ||||
| 3. | 02781-00628 | [1] | Union Komatsu | 0.18 kg. |
| ["SN: 65001-@"] | ||||
| 5. | 07002-62434 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65001-@"] analogs:["7081W28910"] | ||||
| 6. | 07094-10518 | [4] | Clamp Komatsu China | |
| ["SN: 65001-@"] analogs:["0709400518"] | ||||
| 7. | 07095-00526 | [2] | Cushion Komatsu | 0.04 kg. |
| ["SN: 65001-@"] | ||||
| 8. | 01010-81270 | [2] | Bolt Komatsu | 0.078 kg. |
| ["SN: 65001-@"] analogs:["0101051270"] | ||||
| 9. | 01643-31232 | [2] | Washer Komatsu | 0.027 kg. |
| ["SN: 65001-@"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 10. | 21M-03-22160 | [1] | Bracket Komatsu China | |
| ["SN: 65001-@"] | ||||
| 11. | 01010-81230 | [1] | Bolt Komatsu | 0.043 kg. |
| ["SN: 65001-@"] analogs:["0101051230", "01010B1230"] | ||||
| 13. | 21M-03-22180 | [1] | Bracket Komatsu China | |
| ["SN: 65001-@"] | ||||
| 16. | 209-03-41860 | [1] | Bracket Komatsu China | |
| ["SN: 65001-@"] analogs:["2090341860XC"] | ||||
| 17. | 209-03-41870 | [1] | Cover Komatsu China | |
| ["SN: 65001-@"] analogs:["2090341870XC"] | ||||
| 18. | 209-03-41880 | [1] | Sheet Komatsu China | |
| ["SN: 65001-@"] | ||||
| 19. | 01010-81035 | [1] | Bolt Komatsu | 0.033 kg. |
| ["SN: 65001-@"] analogs:["801015556", "01010D1035", "0101051035"] | ||||
| 20. | 01643-31032 | [1] | Washer Komatsu | 0.054 kg. |
| ["SN: 65001-@"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 21. | 21M-03-22140 | [1] | Tube Komatsu China | |
| ["SN: 65001-@"] | ||||
| 23. | 22U-62-21480 | [1] | Nipple Komatsu China | |
| ["SN: 65001-@"] | ||||
| 30. | 21M-03-22170 | [1] | Bracket Komatsu China | |
| ["SN: 65001-@"] | ||||
| 33. | 21M-03-22150 | [1] | Tube Komatsu China | |
| ["SN: 65001-@"] | ||||
| 34. | 02896-61012 | [1] | O-ring Komatsu | 0.17 kg. |
| ["SN: 65001-@"] | ||||
| 35. | 02781-00516 | [1] | Union Komatsu | 0.2 kg. |
| ["SN: 65001-@"] | ||||
| 36. | 02896-61015 | [1] | O-ring Komatsu | 0.21 kg. |
| ["SN: 65001-@"] | ||||
| 37. | 07002-62034 | [1] | O-ring Komatsu | 0.94 kg. |
| ["SN: 65001-@"] | ||||
| 38. | 07094-10417 | [2] | Clamp Komatsu China | |
| ["SN: 65001-@"] | ||||
| 39. | 07095-00420 | [1] | Cushion Komatsu | 0.046 kg. |
| ["SN: 65001-@"] | ||||
| 45. | 21M-03-22120 | [1] | Cover Komatsu China | |
| ["SN: 65001-65049"] | ||||
| 48. | 21M-06-21190 | [1] | Wiring Harness Komatsu China | |
| ["SN: 65001-@"] | ||||
| 49. | 04434-51012 | [1] | Clip Komatsu | 0.014 kg. |
| ["SN: 65001-@"] | ||||
| 50. | 01010-81225 | [1] | Bolt Komatsu | 0.074 kg. |
| ["SN: 65001-@"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 52. | 20Y-54-65180 | [1] | Grommet Komatsu | 0.04 kg. |
| ["SN: 65001-@"] | ||||
| 53. | 21M-03-22191 | [1] | Cover Komatsu China | |
| ["SN: 65001-@"] | ||||
| 54. | 21M-03-22220 | [1] | Sheet Komatsu China | |
| ["SN: 65001-@"] | ||||
| 55. | 01010-81235 | [3] | Bolt Komatsu | 0.048 kg. |
| ["SN: 65001-@"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
