COUPLING, LUBRICATION PIPING (#65001-) PC850-8E0 S/N 65001-UP Komatsu


OK request send
EXCAVATORS
PC850-8E0 S/N 65001-UP
COUPLING
COUPLING, OIL CHECK GAUGE (#65001-)
COUPLING, OIL CHECK GAUGE (#65001-)
b004002
COUPLING, CASE (#65001-)
COUPLING, CASE (#65001-)
b004001

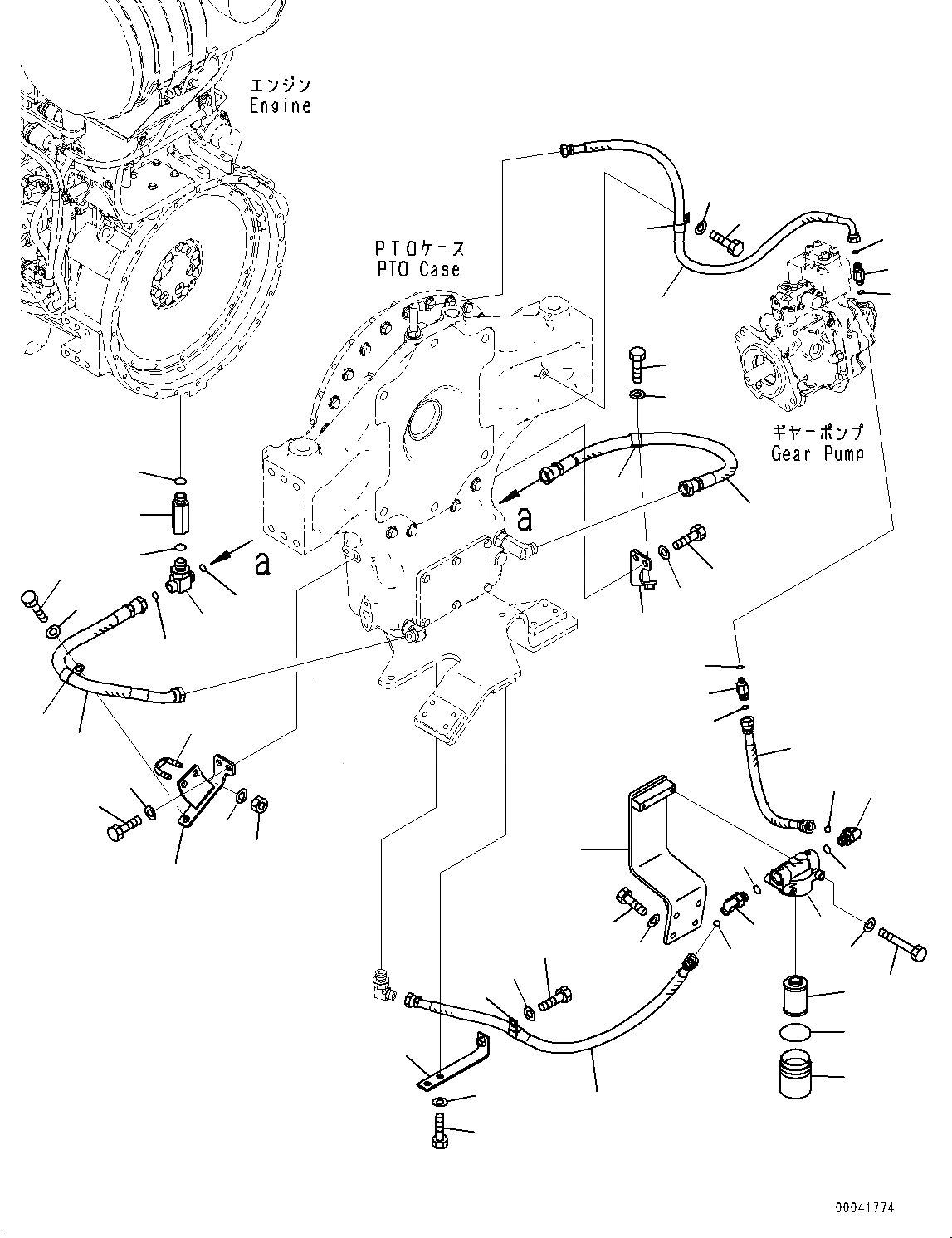

COUPLING, LUBRICATION PIPING (#65001-)

PC850-8E0 S/N 65001-UP
1
2
4
9
12
17
18
19
20
21
23
24
25
27
28
30
32
36
35
37
40
41
42
43
44
46
48
49
50
3
5
6
10
9
11
10
11
14
13
15
16
22
26
29
31
33
33
34
45
47
51
8
7
4
39
38
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   209-01-42232   [1]   Bracket Komatsu China
    ["SN: 65001-UP"] analogs:["2090142232XC"]
2.   01010-81230   [4]   Bolt Komatsu 0.043 kg.
    ["SN: 65001-UP"] analogs:["0101051230", "01010B1230"]
3.   01643-31232   [4]   Washer Komatsu 0.027 kg.
    ["SN: 65001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
4.   209-01-42251   [1]   Filter Assembly Komatsu China
    ["SN: 65001-UP"]
   5.   209-01-42260   [1]   Element Assembly Komatsu 0.1 kg.
    ["SN: 65001-UP"]
   6.   07000-F2065   [1]   O-ring Komatsu 0.003 kg.
    ["SN: 65001-UP"]
7.   01011-81000   [2]   Bolt Komatsu 0.08 kg.
    ["SN: 65001-UP"] analogs:["801015567"]
8.   01643-31032   [2]   Washer Komatsu 0.054 kg.
    ["SN: 65001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
9.   418-62-35111   [2]   Elbow Komatsu China
    ["SN: 65001-UP"]
10.   07002-21823   [2]   O-ring Komatsu 0.36 kg.
    ["SN: 65001-UP"] analogs:["0700231823"]
11.   02896-21012   [2]   O-ring Komatsu 0.17 kg.
    ["SN: 65001-UP"]
12.   21S-62-31461   [1]   Union Komatsu China
    ["SN: 65001-UP"]
13.   07002-21423   [1]   O-ring Komatsu China 0.28 kg.
    ["SN: 65001-UP"]
14.   02896-21009   [1]   O-ring Komatsu 0.14 kg.
    ["SN: 65001-UP"]
15.   209-01-42311   [1]   Union Komatsu China
    ["SN: 65001-UP"]
18.   02762-00405   [1]   Hose, Face Seal Type Komatsu China 0.475 kg.
    ["SN: 65001-UP"]
19.   02763-00311   [1]   Hose, Face Seal Type Komatsu China
    ["SN: 65001-UP"]
20.   04434-51612   [1]   Clip Komatsu 0.02 kg.
    ["SN: 65001-UP"]
21.   01010-81225   [1]   Bolt Komatsu 0.074 kg.
    ["SN: 65001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
23.   02762-00409   [1]   Hose, Face Seal Type Komatsu 0.615 kg.
    ["SN: 65001-UP"]
24.   22S-62-14450   [1]   Bracket Komatsu China
    ["SN: 65001-UP"]
27.   04434-51912   [1]   Clip Komatsu 0.02 kg.
    ["SN: 65001-UP"]
30.   203-62-61410   [1]   Joint Komatsu 0.56 kg.
    ["SN: 65001-UP"]
31.   07002-22434   [1]   O-ring Komatsu 1.1 kg.
    ["SN: 65001-UP"] analogs:["0700232434", "R0700222434"]
32.   21N-64-36720   [1]   Tee Komatsu China
    ["SN: 65001-UP"]
33.   02896-21015   [2]   O-ring Komatsu 0.21 kg.
    ["SN: 65001-UP"]
35.   02764-00506   [1]   Hose, Face Seal Type Komatsu China
    ["SN: 65001-UP"]
36.   02762-00507   [1]   Hose, Face Seal Type Komatsu China 0.749 kg.
    ["SN: 65001-UP"]
37.   209-01-42281   [1]   Bracket Komatsu China
    ["SN: 65001-UP"] analogs:["2090142281XC"]
40.   07283-32738   [1]   Clip, Pipe Komatsu 0.084 kg.
    ["SN: 65001-UP"]
41.   01597-01009   [2]   Nut Komatsu 0.011 kg.
    ["SN: 65001-UP"]
43.   04434-52312   [1]   Clip Komatsu 0.021 kg.
    ["SN: 65001-UP"]
46.   209-01-42270   [1]   Bracket Komatsu China
    ["SN: 65001-UP"] analogs:["2090142270XC"]
