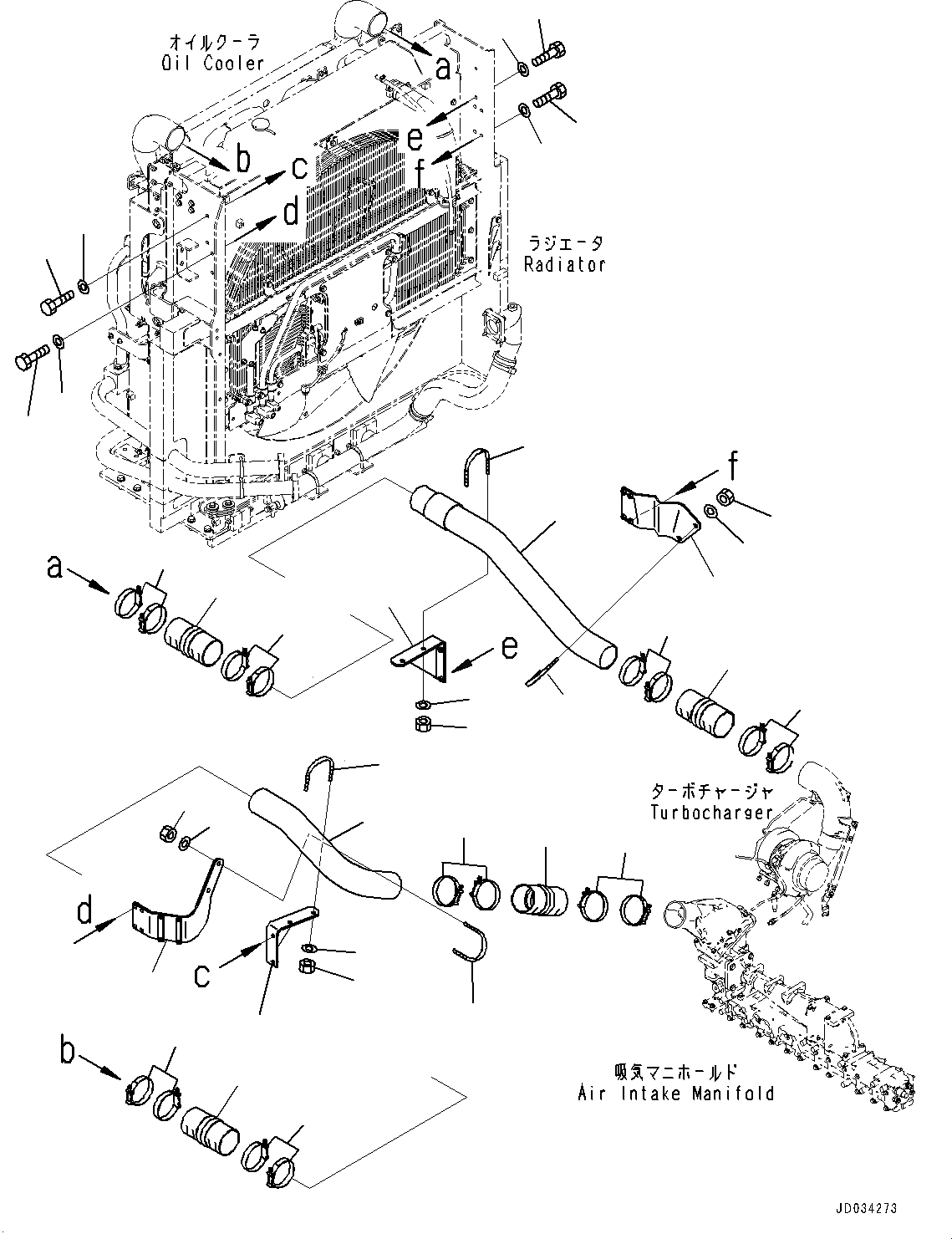

COOLING SYSTEM, AFTERCOOLER PIPING (#65001-)
14
15
22
24
23
22
24
23
19
16
15
15
14
13
10
11
11
12
12
4
10
7
3
15
3
2
2
3
1
3
20
21
18
17
6
8
9
5
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 209-03-41641 | [1] | Tube Komatsu China | |
| ["SN: 65001-UP"] analogs:["2090341641XC"] | ||||
| 2. | 209-03-41711 | [2] | Hose Komatsu | 0.5 kg. |
| ["SN: 65001-UP"] | ||||
| 3. | 208-62-73910 | [8] | Clamp Komatsu | 0.18 kg. |
| ["SN: 65001-UP"] | ||||
| 4. | 209-03-41660 | [1] | Bracket Komatsu China | |
| ["SN: 65001-UP"] analogs:["2090341660XC"] | ||||
| 5. | 01010-81240 | [2] | Bolt Komatsu | 0.052 kg. |
| ["SN: 65001-UP"] analogs:["801015573", "0101051240"] | ||||
| 6. | 01643-31232 | [2] | Washer Komatsu | 0.027 kg. |
| ["SN: 65001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 7. | 209-03-41671 | [1] | Bracket Komatsu China | |
| ["SN: 65001-UP"] analogs:["2090341671XC"] | ||||
| 10. | 07283-31185 | [2] | Clip Komatsu | 0.328 kg. |
| ["SN: 65001-UP"] | ||||
| 11. | 01597-01211 | [4] | Nut Komatsu | 0.016 kg. |
| ["SN: 65001-UP"] | ||||
| 13. | 209-03-41651 | [1] | Tube Komatsu China | |
| ["SN: 65001-UP"] analogs:["2090341651XC"] | ||||
| 16. | 209-03-45690 | [1] | Bracket Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 19. | 209-03-41681 | [1] | Bracket Komatsu China | |
| ["SN: 65001-UP"] | ||||
