CENTER FRAME, (#65069-)
15
11
16
17
14
10
13
9
1
4
3
6
5
8
7
2
12
9
For full view, you need register

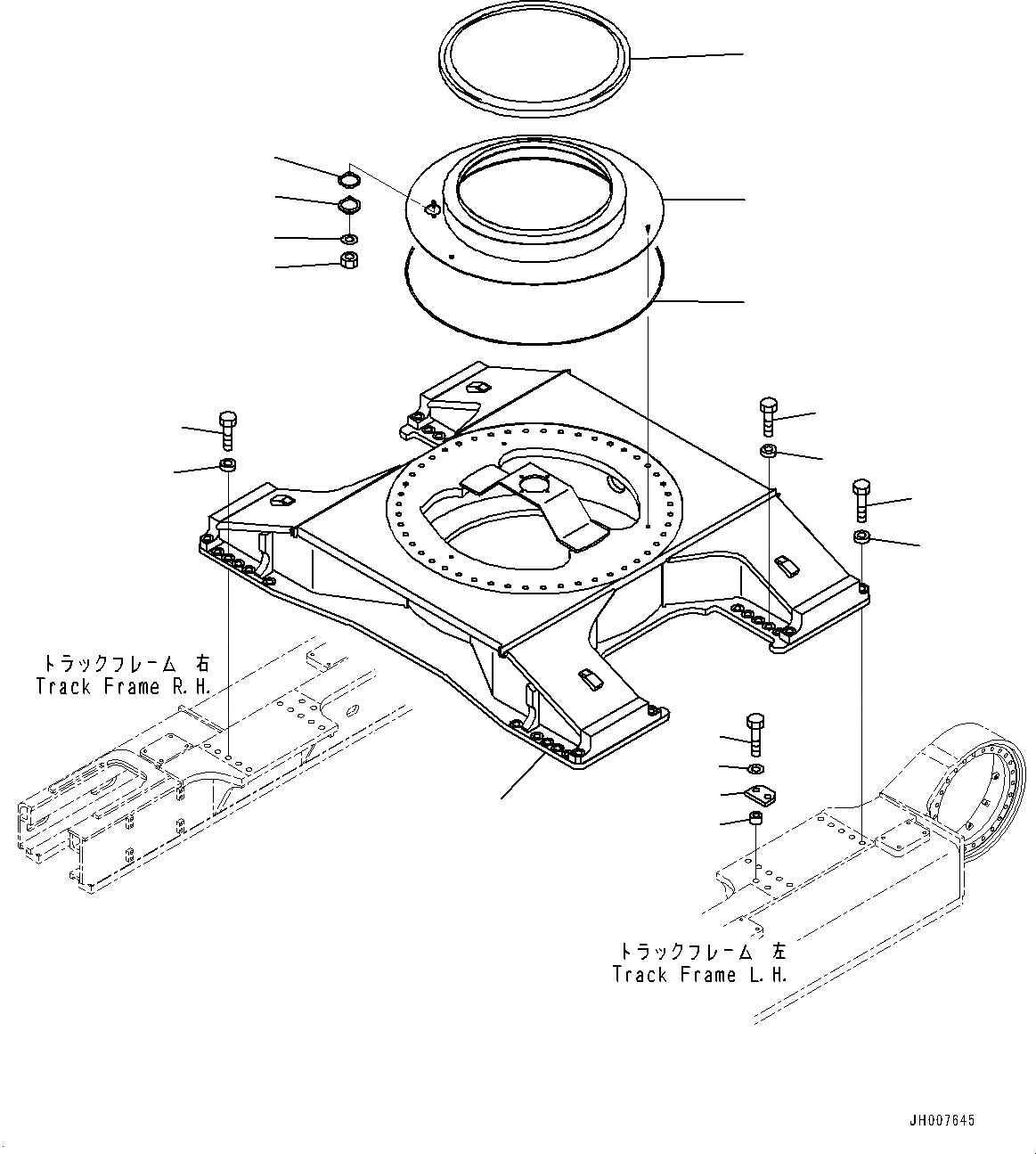

Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 209-30-77115 | [1] | Frame Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 2. | 209-30-77130 | [1] | Seal Komatsu | 1.65 kg. |
| ["SN: 65001-UP"] | ||||
| 3. | 205-30-71181 | [1] | Cover Komatsu | 1 kg. |
| ["SN: 65001-UP"] | ||||
| 4. | 205-30-71191 | [1] | Gasket Komatsu | 0.022 kg. |
| ["SN: 65001-UP"] | ||||
| 5. | 01580-11008 | [2] | Nut Komatsu | 0.011 kg. |
| ["SN: 65001-UP"] | ||||
| 6. | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| ["SN: 65001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 7. | 209-30-77123 | [1] | Cover Komatsu | 69.8 kg. |
| ["SN: 65001-UP"] | ||||
| 8. | 209-30-77140 | [1] | Seal Komatsu | 0.1 kg. |
| ["SN: 65001-UP"] | ||||
| 9. | 209-30-41630 | [24] | Spacer Komatsu China | |
| ["SN: 65069-UP"] | ||||
| 10. | 209-09-51110 | [16] | Bolt Komatsu | 1.4 kg. |
| ["SN: 65069-UP"] | ||||
| 13. | 209-09-11310 | [8] | Bolt Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 14. | 209-30-45121 | [4] | Plate Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 16. | 209-30-11330 | [8] | Spacer Komatsu China | |
| ["SN: 65001-UP"] analogs:["2093011330XC"] | ||||
| 17. | 01643-33690 | [8] | Washer Komatsu | 0.214 kg. |
| ["SN: 65001-UP"] | ||||
