AIR CLERNER(#20004-30038) 2D94-2E S/N 20004-UP Komatsu


OK request send
ENGINES
2D94-2E S/N 20004-UP
CYLINDER HEAD
AIR CLEANER(#30039-)
AIR CLEANER(#30039-)
030060
EXHAUST MANIFOLD
EXHAUST MANIFOLD
030050
AIR INTAKE MANIFOLD
AIR INTAKE MANIFOLD
030040
MUFFLER(#20004-30038)
MUFFLER(#20004-30038)
030080

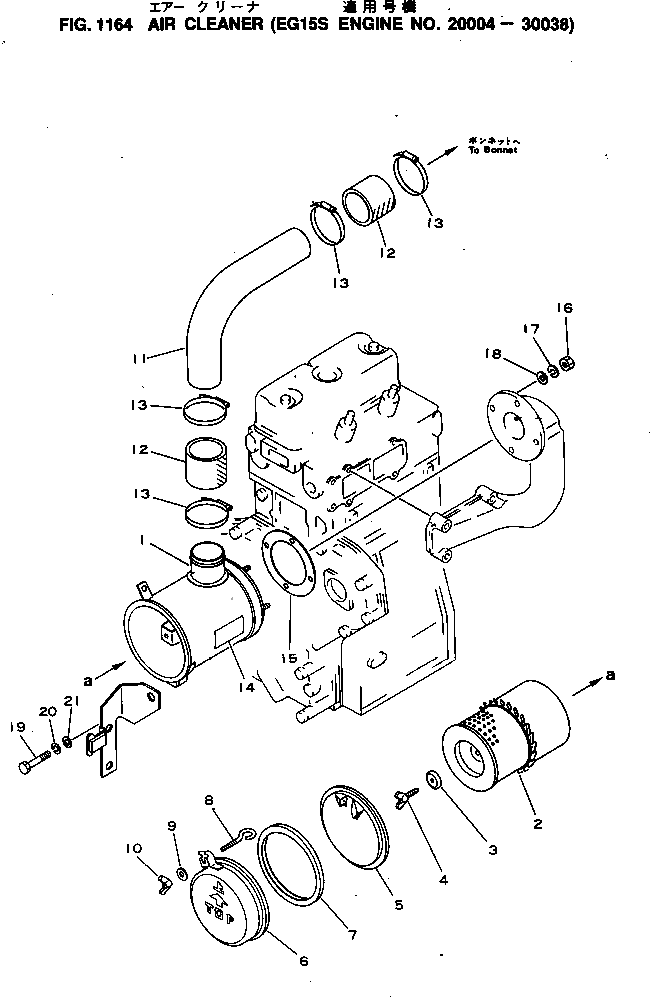

AIR CLERNER(#20004-30038)

2D94-2E S/N 20004-UP
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
     6140-85-7100   [1]   AIR CLEANER ASS'Y Komatsu China
    ["SN: 20004-30038"] |1.
   1.   6140-85-7110   [1]   BODY Komatsu China
    ["SN: 20004-30038"]
        600-181-6301   [1]   ELEMENT ASS'Y Komatsu China
    ["SN: 20004-@"] |2.
3.   600-181-6510   [1]   SEAL Komatsu China
    ["SN: 20004-@"]
   4.   600-181-6620   [1]   BOLT,WING Komatsu China
    ["SN: 20004-@"]
   5.   600-181-6130   [1]   DIVIDER Komatsu China
    ["SN: 20004-@"]
   6.   6140-81-7220   [1]   COVER Komatsu China
    ["SN: 20004-@"]
   7.   600-181-6410   [1]   PACKING Komatsu China
    ["SN: 20004-@"]
   8.   600-181-6630   [2]   BOLT Komatsu China
    ["SN: 20004-@"]
   9.   600-181-6640   [2]   WASHER Komatsu China
    ["SN: 20004-@"]
   10.   01540-50632   [2]   NUT,WING Komatsu China
    ["SN: 20004-@"] analogs:["D40A340", "D30A176", "D40A329", "0154010632", "0154000632", "0154040632"]
11.   6142-15-4120   [1]   PIPE Komatsu China
    ["SN: 20004-30038"]
12.   6140-15-4130   [2]   HOSE Komatsu China
    ["SN: 20004-30038"]
13.   07281-00809   [4]   CLAMP Komatsu 0.047 kg.
    ["SN: 20004-30038"] analogs:["42YS62HP02", "YM23000080000"]
14.   09641-00660   [1]   PLATE¤ INSTRUCTION Komatsu China
    ["SN: 20004-30038"]
15.   6140-81-7310   [1]   GASKET (K1) Komatsu China
    ["SN: 20004-@"] analogs:["6140817311"]
16.   01580-00806   [4]   NUT Komatsu 0.005 kg.
    ["SN: 20004-@"]
17.   01602-00825   [4]   WASHER,SPRING Komatsu 0.004 kg.
    ["SN: 20004-@"] analogs:["0160220825", "0231011020", "6124613790"]
18.   01641-20812   [4]   WASHER Komatsu 0.005 kg.
    ["SN: 20004-@"] analogs:["YM22117080000"]
19.   01010-30820   [1]   BOLT,(SEE FIG.1411) Komatsu 0.013 kg.
    ["SN: 20004-@"] analogs:["01010E0820"]
21.   01643-30823   [1]   WASHER,(SEE FIG.1411) Komatsu 0.004 kg.
    ["SN: 20004-@"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
