EXHAUST MANIFOLD AND MUFFLER(#02519-03750) 3D72-2E S/N 02519-UP Komatsu


OK request send
3D72-2E S/N 02519-UP
CYLINDER HEAD
AIR CLEANER
AIR CLEANER
030050
AIR INTAKE MANIFOLD AND GLOW PLUG
AIR INTAKE MANIFOLD AND GLOW PLUG
030040
CYLINDER HEAD COVER
CYLINDER HEAD COVER
030030

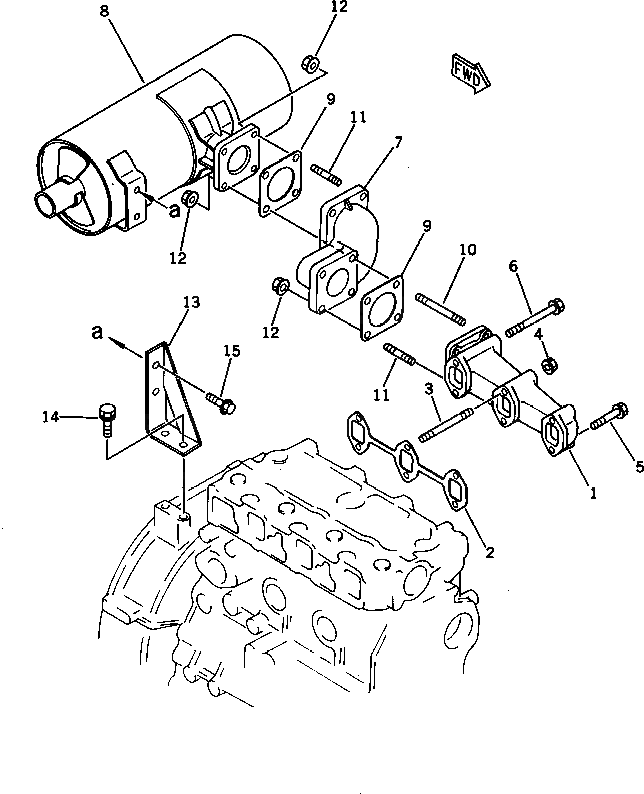

EXHAUST MANIFOLD AND MUFFLER(#02519-03750)

3D72-2E S/N 02519-UP
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   YM119620-13101   [1]   MANIFOLD,EXHAUST Komatsu China
    ["SN: 02519-UP"]
2.   YM119620-13110   [1]   GASKET (KIT) Komatsu China
    ["SN: 02519-UP"] analogs:["YMR000696"]
3.   YM26216-080652   [2]   STUD Komatsu China
    ["SN: 02519-UP"] analogs:["YMR001819", "S216080652", "YM26217080652", "20N0115170"]
4.   YM194990-22050   [2]   NUT Komatsu China
    ["SN: 02519-UP"] analogs:["YMR000353", "YM12499022050"]
5.   YM26106-080352   [2]   BOLT Komatsu China
    ["SN: 02519-UP"] analogs:["YMR000406"]
6.   YM26106-080802   [2]   BOLT Komatsu 0.031 kg.
    ["SN: 02519-UP"]
7.   YM119640-13150   [1]   PIPE Komatsu China
    ["SN: 02519-UP"] analogs:["200767492", "PZF200767492", "20M02R1051"]
8.   YM119640-13500   [1]   MUFFLER Komatsu China
    ["SN: 02519-UP"] analogs:["YMR002051", "YM11963513510", "RYM11964013500"]
9.   YM124701-11910   [2]   GASKET (KIT) Komatsu 0.021 kg.
    ["SN: 02519-UP"] analogs:["YM12470111911"]
11.   YM26216-080222   [6]   STUD Komatsu 0.011 kg.
    ["SN: 02519-UP"]
13.   YM119640-13650   [1]   STAY Komatsu China
    ["SN: 02519-UP"]
14.   YM26106-100162   [2]   BOLT Komatsu China
    ["SN: 02519-UP"]
15.   YM26014-080222   [2]   BOLT Komatsu China
    ["SN: 02519-UP"]
