FUEL ENGINE LINE (WITH WATER SEPARATOR) D475A-3 S/N 10601-UP (Shoe Slipping Control Spec.) Komatsu


OK request send
BULLDOZERS
D475A-3 S/N 10601-UP (Shoe Slipping Control Spec.)
FUEL TANK AND RELATED PARTS
FUEL PIPING
FUEL PIPING
090030
FUEL TANK (FOR HEAVY CONNECTOR)
FUEL TANK (FOR HEAVY CONNECTOR)
090020
FUEL TANK
FUEL TANK
090010
FUEL ENGINE LINE (WITHOUT WATER SEPARATOR)
FUEL ENGINE LINE (WITHOUT WATER SEPARATOR)
090050

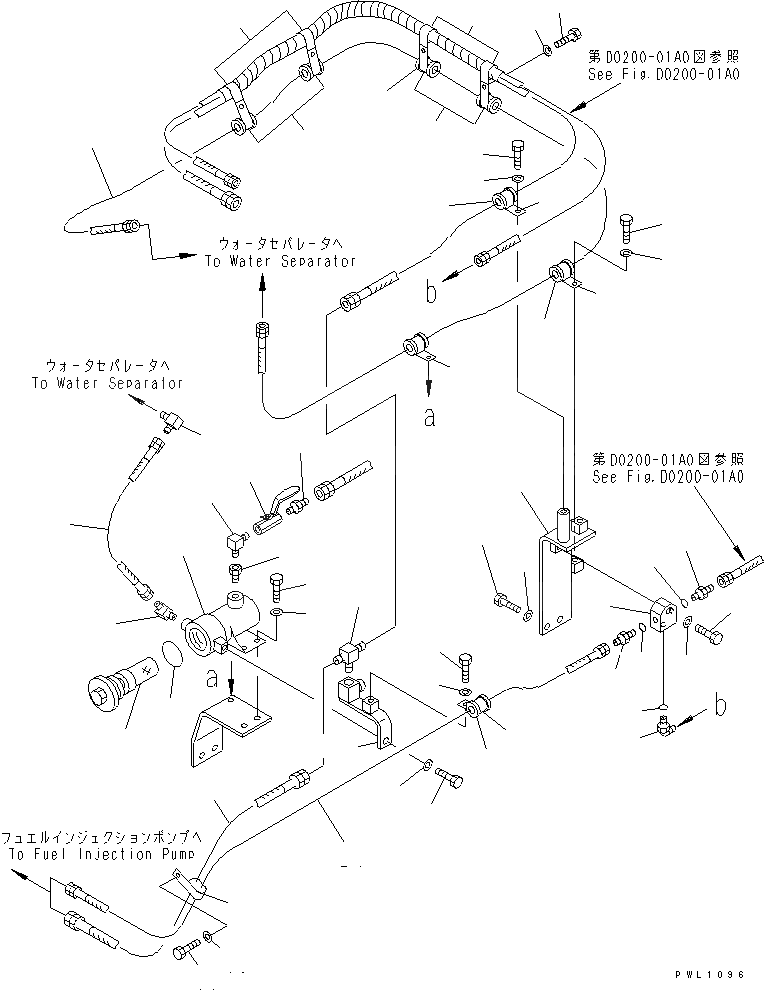

FUEL ENGINE LINE (WITH WATER SEPARATOR)

D475A-3 S/N 10601-UP (Shoe Slipping Control Spec.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   198-04-11231   [1]   CASE Komatsu China
    ["SN: 10601-UP"]
2.   195-04-11150   [1]   STRAINER Komatsu 1.32 kg.
    ["SN: 10601-UP"]
3.   07000-03065   [1]   O-RING Komatsu China 0.01 kg.
    ["SN: 10601-UP"]
4.   01010-81230   [2]   BOLT Komatsu 0.043 kg.
    ["SN: 10601-UP"] analogs:["0101051230", "01010B1230"]
5.   01643-31232   [2]   WASHER Komatsu 0.027 kg.
    ["SN: 10601-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
6.   07326-10604   [1]   ADAPTER Komatsu 0.058 kg.
    ["SN: 10601-UP"]
7.   195-04-11450   [1]   ELBOW Komatsu 0.24 kg.
    ["SN: 10601-UP"]
8.   07700-40460   [1]   VALVE Komatsu 0.228 kg.
    ["SN: 10601-UP"] analogs:["0770020504"]
9.   07238-10522   [1]   CONNECTOR Komatsu 0.126 kg.
    ["SN: 10601-UP"]
10.   198-04-51161   [1]   ELBOW Komatsu China
    ["SN: 10601-UP"]
13.   208-936-4260   [1]   TEE Komatsu China
    ["SN: 10601-UP"]
14.   198-04-51171   [1]   BRACKET Komatsu China
    ["SN: 10601-UP"]
15.   01010-81225   [2]   BOLT Komatsu 0.074 kg.
    ["SN: 10601-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
17.   207-62-52550   [1]   TEE Komatsu China
    ["SN: 10601-UP"]
18.   01010-81050   [1]   BOLT Komatsu 0.038 kg.
    ["SN: 10601-UP"] analogs:["801015559", "0101051050"]
19.   01643-31032   [1]   WASHER Komatsu 0.054 kg.
    ["SN: 10601-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
20.   07230-20210   [2]   UNION Komatsu 0.047 kg.
    ["SN: 10601-UP"] analogs:["0723010210"]
21.   07235-10210   [1]   ELBOW Komatsu 0.083 kg.
    ["SN: 10601-UP"]
22.   07002-11423   [3]   O-RING Komatsu China 0.001 kg.
    ["SN: 10601-UP"] analogs:["0700201423"]
23.   07102-20306   [1]   HOSE Komatsu China 0.54 kg.
    ["SN: 10601-UP"]
24.   07102-20211   [1]   HOSE Komatsu 0.475 kg.
    ["SN: 10601-UP"]
25.   04434-52512   [1]   CLIP Komatsu 0.034 kg.
    ["SN: 10601-UP"]
26.   07095-20318   [1]   CUSHION Komatsu 0.03 kg.
    ["SN: 10601-UP"]
29.   07095-20420   [4]   CUSHION Komatsu 0.015 kg.
    ["SN: 10601-UP"]
30.   04434-51812   [4]   CLIP Komatsu 0.019 kg.
    ["SN: 10601-UP"]
31.   04434-52712   [4]   CLIP Komatsu 0.036 kg.
    ["SN: 10601-UP"]
34.   04434-51912   [1]   CLIP Komatsu 0.02 kg.
    ["SN: 10601-UP"]
35.   07095-20213   [1]   CUSHION Komatsu 0.01 kg.
    ["SN: 10601-UP"]
38.   07102-20503   [1]   HOSE Komatsu China 0.73 kg.
    ["SN: 10601-UP"]
39.   198-04-11240   [1]   ELBOW Komatsu China
    ["SN: 10601-UP"]
40.   287-04-11120   [1]   ELBOW Komatsu China
    ["SN: 10601-UP"]
41.   07102-20436   [1]   HOSE Komatsu China
    ["SN: 10601-UP"] analogs:["0710020436"]
46.   141-06-11220   [1]   CLIP Komatsu 0.035 kg.
    ["SN: 10601-UP"] analogs:["0443552110"]
47.   01010-81025   [1]   BOLT Komatsu 0.36 kg.
    ["SN: 10601-UP"] analogs:["0101051025", "0101651025", "801015109"]
