FUEL PIPING(#10038-) D575A-2 S/N 10001-UP Komatsu


OK request send
BULLDOZERS
D575A-2 S/N 10001-UP
FUEL TANK AND RELATED PARTS
FUEL PIPING(#10001-10037)
FUEL PIPING(#10001-10037)
090070
FUEL PIPING(#10001-10042)
FUEL PIPING(#10001-10042)
090060
FUEL SHUT OFF CONTROL (2/2)(#10038-)
FUEL SHUT OFF CONTROL (2/2)(#10038-)
090050
FUEL RETURN PIPING
FUEL RETURN PIPING
090090
BYPASS FILTER PIPING(#10035-)
BYPASS FILTER PIPING(#10035-)
090100
CORROSION RESISTOR PIPING(#10035-)
CORROSION RESISTOR PIPING(#10035-)
090110

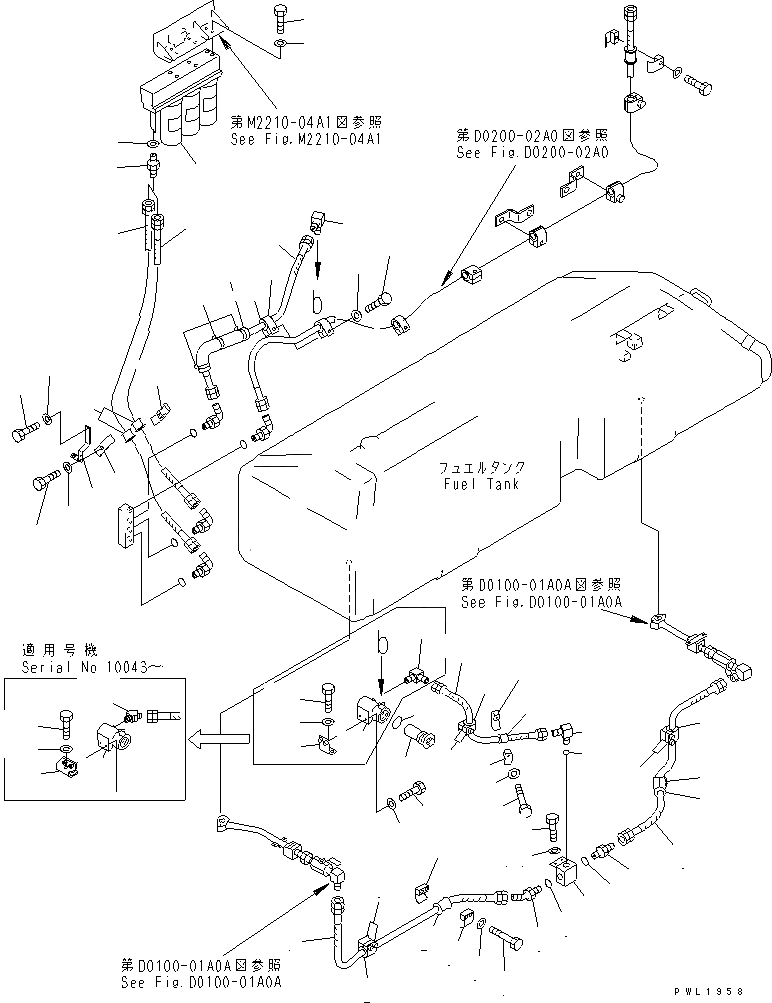

FUEL PIPING(#10038-)

D575A-2 S/N 10001-UP
1
2
2
2
2
3
3
3
3
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
17
17
18
19
20
20
21
22
23
23
23A
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   07102-21015   [1]   HOSE Komatsu China 2.55 kg.
    ["SN: 10001-UP"] analogs:["14S6212790"]
2.   07095-01035   [4]   CUSHION Komatsu 0.1 kg.
    ["SN: 10001-UP"] analogs:["21T6276840"]
3.   07094-01024   [8]   CLAMP Komatsu 0.38 kg.
    ["SN: 10001-UP"] analogs:["0709411024"]
4.   01010-81275   [8]   BOLT Komatsu 0.082 kg.
    ["SN: 10001-UP"] analogs:["0101051275"]
5.   01643-31232   [8]   WASHER Komatsu 0.027 kg.
    ["SN: 10001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
6.   07102-21014   [1]   HOSE Komatsu China 2.45 kg.
    ["SN: 10043-UP"]
7.   19M-04-11480   [1]   TEE Komatsu China
    ["SN: 10001-UP"]
8.   07236-11034   [1]   ELBOW Komatsu 0.64 kg.
    ["SN: 10001-UP"]
9.   07002-03334   [2]   O-RING Komatsu China 0.025 kg.
    ["SN: 10001-UP"] analogs:["0700213334"]
10.   07230-21034   [1]   UNION Komatsu 0.2 kg.
    ["SN: 10001-UP"] analogs:["0723011034"]
11.   07235-10628   [1]   ELBOW Komatsu 0.407 kg.
    ["SN: 10001-UP"]
12.   07002-02434   [1]   O-RING Komatsu China 0.01 kg.
    ["SN: 10001-UP"] analogs:["0700212434", "0700213434"]
13.   01010-81225   [2]   BOLT Komatsu 0.074 kg.
    ["SN: 10001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
15.   07102-20608   [1]   HOSE Komatsu China 1.22 kg.
    ["SN: 10001-UP"]
16.   07095-00628   [2]   CUSHION Komatsu 0.045 kg.
    ["SN: 10001-UP"]
17.   07094-10620   [4]   CLAMP Komatsu China
    ["SN: 10001-UP"]
18.   01010-81270   [2]   BOLT Komatsu 0.078 kg.
    ["SN: 10001-UP"] analogs:["0101051270"]
20.   198-04-11231   [1]   CASE Komatsu China
    ["SN: 10001-UP"]
21.   195-04-11150   [1]   STRAINER Komatsu 1.32 kg.
    ["SN: 10001-UP"]
22.   07000-03065   [1]   O-RING Komatsu China 0.01 kg.
    ["SN: 10001-UP"]
23.   578-41-17120   [1]   ELBOW Komatsu 0.48 kg.
    ["SN: 10043-UP"]
23A.   144-978-6570   [1]   ELBOW Komatsu China
    ["SN: 10043-UP"]
24.   19M-04-11511   [1]   BRACKET Komatsu China
    ["SN: 10043-UP"]
24.   19M-04-11510   [1]   BRACKET Komatsu China
    ["SN: 10001-10042"]
25.   01010-81230   [2]   BOLT Komatsu 0.043 kg.
    ["SN: 10001-UP"] analogs:["0101051230", "01010B1230"]
29.   07102-20610   [1]   HOSE Komatsu China 1.35 kg.
    ["SN: 10001-10042"]
30.   07094-00620   [2]   CLAMP Komatsu China
    ["SN: 10001-UP"]
32.   600-311-7201   [1]   FUEL FILTER ASS'Y Komatsu China
    ["SN: 10001-UP"] analogs:["6003117200"]
33.   198-49-16780   [2]   NIPPLE Komatsu China
    ["SN: 10001-UP"]
34.   07005-02216   [2]   GASKET Komatsu 0.01 kg.
    ["SN: 10001-UP"] analogs:["YM22190220002"]
35.   01010-81435   [6]   BOLT Komatsu China 0.06 kg.
    ["SN: 10001-UP"] analogs:["0101061435", "0101051435", "0101031435"]
36.   01643-31445   [6]   WASHER Komatsu 0.019 kg.
    ["SN: 10001-UP"] analogs:["0164301432"]
37.   07102-20509   [1]   HOSE Komatsu China 0.857 kg.
    ["SN: 10038-UP"]
38.   07102-20510   [1]   HOSE Komatsu China 1.15 kg.
    ["SN: 10038-UP"]
39.   07095-00524   [4]   CUSHION Komatsu 0.048 kg.
    ["SN: 10038-UP"]
40.   07094-20518   [4]   CLAMP Komatsu China
    ["SN: 10038-UP"]
41.   01010-81265   [2]   BOLT Komatsu 0.074 kg.
    ["SN: 10038-UP"] analogs:["0101051265"]
43.   19M-04-21220   [1]   BRACKET Komatsu China
    ["SN: 10038-UP"]
48.   777-06-12550   [1]   TUBE Komatsu China
    ["SN: 10001-10042"]
49.   08034-00519   [3]   BAND Komatsu 0.002 kg.
    ["SN: 10001-10042"] analogs:["885180004"]
