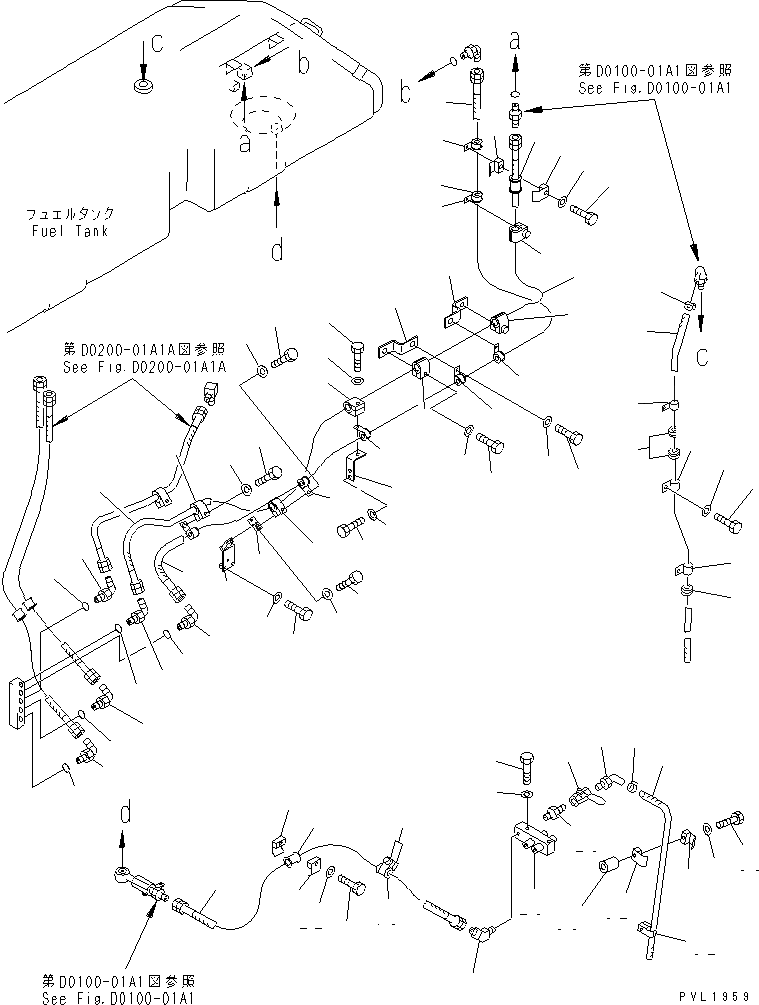

FUEL RETURN PIPING

D575A-2 S/N 10001-UP
1
1
2
3
3
3
3
3
3
3
3
4
4
4
4
4
5
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
33
34
35
36
37
37
37
38
39
40
40
41
41
41
42
42
42
43
44
45
46
47
47
48
48
48
48
48
48
49
50
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   07102-20531   [1]   HOSE Komatsu 2.41 kg.
    ["SN: 10001-UP"]
2.   07095-00524   [8]   CUSHION Komatsu 0.048 kg.
    ["SN: 10038-UP"]
3.   07094-00518   [16]   CLAMP Komatsu China
    ["SN: 10038-UP"] analogs:["0709410518"]
4.   01010-81265   [8]   BOLT Komatsu 0.074 kg.
    ["SN: 10038-UP"] analogs:["0101051265"]
5.   01643-31232   [8]   WASHER Komatsu 0.027 kg.
    ["SN: 10038-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
6.   19M-04-21240   [2]   PLATE Komatsu China
    ["SN: 10038-UP"]
7.   01010-81225   [2]   BOLT Komatsu 0.074 kg.
    ["SN: 10038-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
9.   196-61-31490   [1]   BRACKET Komatsu China
    ["SN: 10038-UP"]
12.   19M-04-21250   [1]   BRACKET Komatsu China
    ["SN: 10038-UP"]
15.   19M-04-21230   [1]   BRACKET Komatsu China
    ["SN: 10038-UP"]
18.   07102-20516   [1]   HOSE Komatsu OEM 1.51 kg.
    ["SN: 10001-UP"]
20.   07094-10518   [4]   CLAMP Komatsu China
    ["SN: 10001-UP"] analogs:["0709400518"]
23.   19M-04-11421   [1]   BLOCK Komatsu China
    ["SN: 10003-UP"]
23.   19M-04-11420   [1]   BLOCK Komatsu China
    ["SN: (10001-10002)"]
24.   566-35-42470   [1]   ELBOW Komatsu China
    ["SN: 10001-UP"]
25.   07325-10400   [1]   NIPPLE Komatsu 0.08 kg.
    ["SN: 10001-UP"]
26.   07700-40460   [1]   VALVE Komatsu 0.228 kg.
    ["SN: 10001-UP"] analogs:["0770020504"]
27.   195-979-2150   [1]   JOINT Komatsu China
    ["SN: 10001-UP"]
27.   437-01-11750   [1]   ELBOW Komatsu China
    ["SN: 10001-10002"]
28.   01010-81270   [2]   BOLT Komatsu 0.078 kg.
    ["SN: 10001-UP"] analogs:["0101051270"]
30.   07260-32636   [1]   HOSE Komatsu China
    ["SN: 10003-UP"]
30.   07260-32080   [1]   HOSE Komatsu China
    ["SN: 10001-10002"]
31.   07281-00489   [1]   CLAMP Komatsu 0.035 kg.
    ["SN: 10001-UP"] analogs:["802660010"]
32.   07094-00417   [2]   CLAMP Komatsu China
    ["SN: 10003-UP"]
32.   07094-00315   [4]   CLAMP Komatsu 0.12 kg.
    ["SN: 10001-10002"] analogs:["0709410315"]
33.   01010-81260   [1]   BOLT Komatsu China 0.069 kg.
    ["SN: 10003-UP"] analogs:["0101051260"]
35.   09483-47190   [1]   HOSE Komatsu China
    ["SN: 10001-UP"]
37.   20Y-62-15951   [3]   CLIP Komatsu 0.05 kg.
    ["SN: 10001-UP"]
38.   01010-81220   [3]   BOLT Komatsu 0.032 kg.
    ["SN: 10001-UP"] analogs:["0101051220"]
40.   209-06-51470   [3]   GROMMET Komatsu China
    ["SN: 10001-UP"] analogs:["1950641850", "4175413510"]
41.   07235-10516   [3]   ELBOW Komatsu 0.3 kg.
    ["SN: 10038-UP"] analogs:["1759166150"]
42.   07002-12034   [3]   O-RING Komatsu China 0.94 kg.
    ["SN: 10038-UP"] analogs:["0700002034", "0700202034", "0700012034"]
43.   07235-10630   [1]   ELBOW Komatsu 0.55 kg.
    ["SN: 10038-UP"]
44.   07002-12434   [1]   O-RING Komatsu China 0.01 kg.
    ["SN: 10038-UP"] analogs:["0700202434", "0700213434"]
45.   07235-10210   [1]   ELBOW Komatsu 0.083 kg.
    ["SN: 10038-UP"]
46.   07002-11423   [1]   O-RING Komatsu China 0.001 kg.
    ["SN: 10038-UP"] analogs:["0700201423"]
47.   07102-20230   [1]   HOSE Komatsu China
    ["SN: 10038-UP"]
48.   04434-51912   [8]   CLIP Komatsu 0.02 kg.
    ["SN: 10038-UP"]
49.   07095-20213   [8]   CUSHION Komatsu 0.01 kg.
    ["SN: 10038-UP"]
50.   144-54-51280   [1]   COLLAR Komatsu China
    ["SN: 10001-UP"]
