FINAL DRIVE (6/6) (L.H.) D575A-3 S/N 10101-UP Komatsu


OK request send
BULLDOZERS
D575A-3 S/N 10101-UP
TORQUE CONVERTOR¤ TRANSMISSION¤ STEERING AND FINAL DRIVE
FINAL DRIVE (5/6) (L.H.)
FINAL DRIVE (5/6) (L.H.)
150430
FINAL DRIVE (4/6) (L.H.)
FINAL DRIVE (4/6) (L.H.)
150420
FINAL DRIVE (3/6) (L.H.)
FINAL DRIVE (3/6) (L.H.)
150410
FINAL DRIVE (1/6) (R.H.)
FINAL DRIVE (1/6) (R.H.)
150450
FINAL DRIVE (2/6) (R.H.)
FINAL DRIVE (2/6) (R.H.)
150460
FINAL DRIVE (3/6) (R.H.)
FINAL DRIVE (3/6) (R.H.)
150470

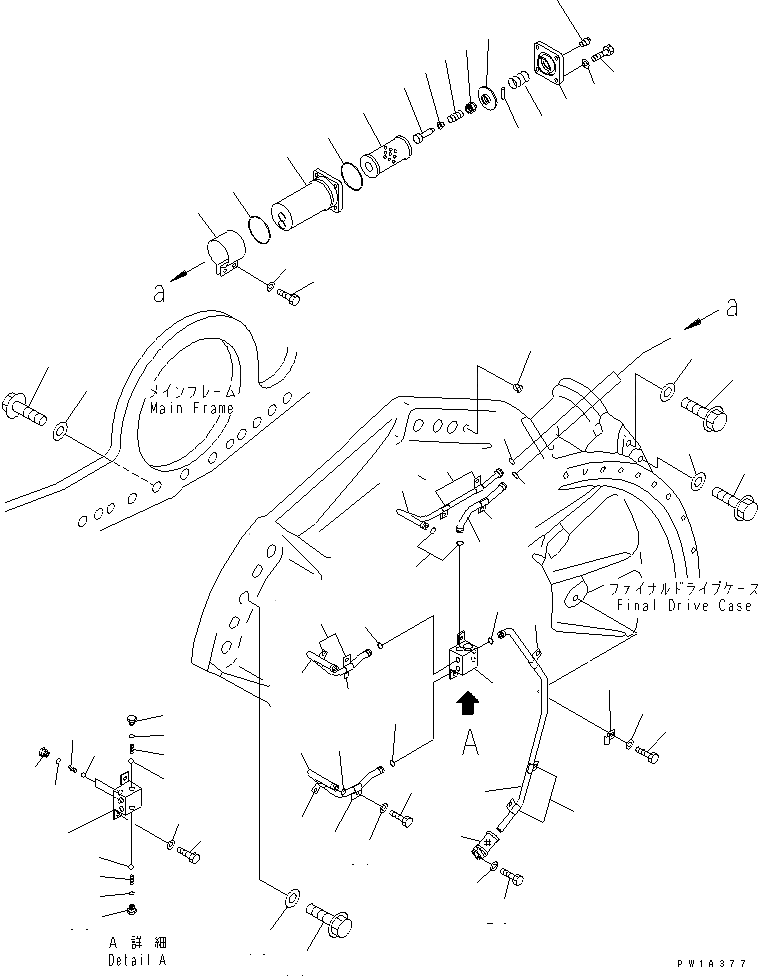

FINAL DRIVE (6/6) (L.H.)

D575A-3 S/N 10101-UP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
23
23
23
23
23
23
24
24
24
24
24
25
26
27
27
28
28
28
29
29
29
30
30
30
31
31
31
32
33
34
35
36
37
38
39
40
40
41
42
43
43
43
43
44
44
44
45
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
     19M-27-00311   [1]   FINAL DRIVE ASS'Y,(FOR SUPER DOZER) Komatsu China
    ["SN: 10106-UP"] analogs:["R19M2700311"] |$3.
     19M-27-00310   [1]   FINAL DRIVE ASS'Y,(FOR SUPER DOZER) Komatsu China
    ["SN: 10101-10104"] |$4.
     19M-27-00104   [1]   FINAL DRIVE ASS'Y,(W/RIPPER) (FOR FUJISAKA) Komatsu China
    ["SN: 10105-UP"] analogs:["19M2700102", "19M2700103"] |$5.
     19M-27-00017   [1]   FINAL DRIVE ASS'Y,(W/RIPPER) Komatsu China
    ["SN: 10101-UP"] |$6.
   1.   19M-27-12510   [1]   CASE Komatsu China
    ["SN: 10101-UP"]
   2.   101-60-15171   [1]   ELEMENT Komatsu 0.262 kg.
    ["SN: 10101-UP"] analogs:["1016015170"]
   3.   102-60-15180   [1]   SHAFT Komatsu China
    ["SN: 10101-UP"] analogs:["23A6013420"]
   4.   102-60-15240   [1]   SEAT Komatsu China
    ["SN: 10101-UP"] analogs:["23A6013460"]
   5.   102-60-15230   [1]   SPRING Komatsu China
    ["SN: 10101-UP"]
   6.   102-60-15220   [1]   VALVE Komatsu China
    ["SN: 10101-UP"]
   7.   19M-27-12530   [1]   SEAT Komatsu China
    ["SN: 10101-UP"]
   8.   102-60-15190   [1]   PIN Komatsu China
    ["SN: 10101-UP"]
   9.   102-60-15170   [1]   SPRING Komatsu China
    ["SN: 10101-UP"] analogs:["1026016170"]
   10.   07000-12095   [1]   O-RING Komatsu China 0.003 kg.
    ["SN: 10101-UP"] analogs:["0700002095"]
   11.   19M-27-12520   [1]   COVER Komatsu China
    ["SN: 10101-UP"]
   12.   07042-70108   [1]   PLUG Komatsu 0.007 kg.
    ["SN: 10101-UP"]
   14.   01010-81240   [4]   BOLT Komatsu 0.052 kg.
    ["SN: 10101-UP"] analogs:["801015573", "0101051240"]
   15.   01643-31232   [4]   WASHER Komatsu 0.027 kg.
    ["SN: 10101-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
   16.   19M-27-12540   [1]   CLAMP Komatsu China
    ["SN: 10101-UP"]
   17.   01010-81225   [2]   BOLT Komatsu 0.074 kg.
    ["SN: 10101-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
   19.   19M-27-12610   [1]   STRAINER Komatsu China
    ["SN: 10101-UP"]
   22.   19M-27-12621   [1]   TUBE Komatsu China
    ["SN: 10101-UP"]
   23.   07000-12018   [9]   O-RING Komatsu China 0.001 kg.
    ["SN: 10101-UP"] analogs:["KB9511301800", "YM24311000180", "0700002018", "2083811590"]
   24.   19M-27-12760   [7]   CLAMP Komatsu China
    ["SN: 10101-UP"]
        19M-27-12301   [1]   VALVE ASS'Y Komatsu China
    ["SN: 10101-UP"] analogs:["19M2700170"] |$37.
27.   19M-27-12311   [1]   VALVE Komatsu China
    ["SN: 10101-UP"]
28.   04260-01270   [4]   BALL Komatsu OEM 0.009 kg.
    ["SN: 10101-UP"]
29.   07750-01628   [4]   SPRING Komatsu 0.002 kg.
    ["SN: 10101-UP"]
30.   19M-27-12350   [4]   PLUG Komatsu China
    ["SN: 10101-UP"]
31.   07002-11823   [4]   O-RING Komatsu 0.36 kg.
    ["SN: 10101-UP"] analogs:["0700201823"]
   34.   19M-27-12632   [1]   TUBE Komatsu China
    ["SN: 10101-UP"]
   35.   19M-27-13250   [1]   CLAMP Komatsu China
    ["SN: 10101-UP"]
   38.   19M-27-12641   [1]   TUBE Komatsu China
    ["SN: 10101-UP"]
   39.   19M-27-12651   [1]   TUBE Komatsu China
    ["SN: 10101-UP"]
   40.   19M-27-12710   [2]   CLAMP Komatsu China
    ["SN: 10101-UP"]
   41.   19M-27-12731   [1]   TUBE Komatsu China
    ["SN: 10101-UP"]
42.   19M-09-12980   [13]   BOLT Komatsu China
    ["SN: 10101-UP"]
43.   01643-33690   [27]   WASHER Komatsu 0.214 kg.
    ["SN: 10101-UP"]
44.   19M-09-13180   [14]   BOLT Komatsu China
    ["SN: 10101-UP"]
45.   07049-03645   [1]   PLUG Komatsu China
    ["SN: 10101-UP"]
