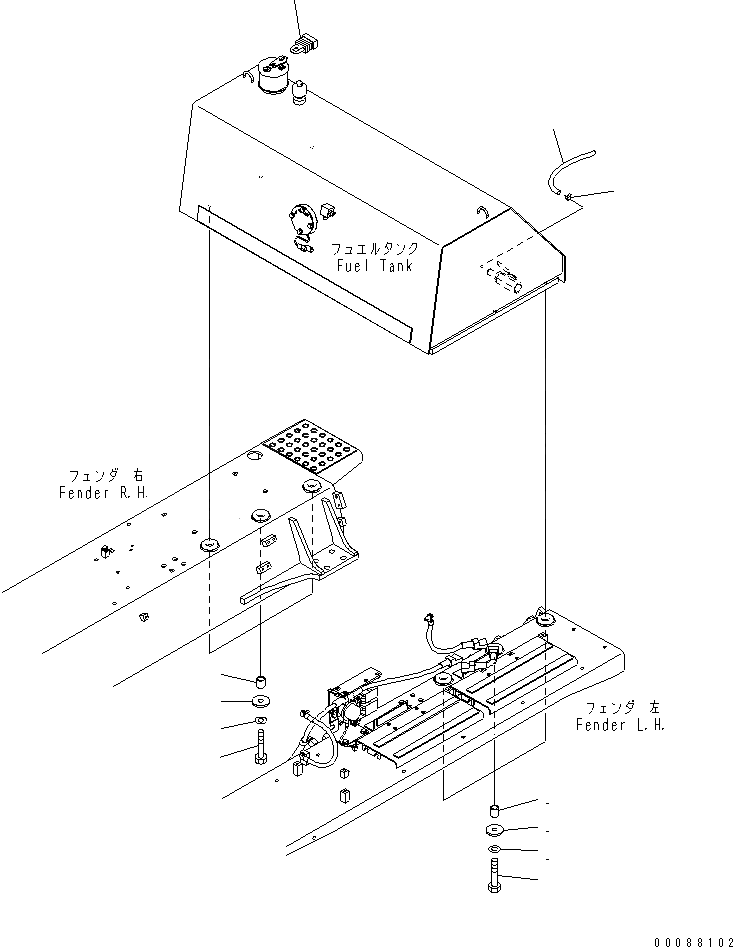

FUEL TANK (TUBE AND LOCK)(#1005-)
1
2
3
3
4
4
5
5
6
6
7
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 07285-00155 | [1] | CLIP Komatsu | 4.8 kg. |
| ["SN: 1001-UP"] | ||||
| 2. | 07270-01555 | [1] | TUBE Komatsu China | |
| ["SN: 1005-UP"] | ||||
| 3. | 17A-04-11191 | [6] | PLATE Komatsu | 0.58 kg. |
| ["SN: 1001-UP"] | ||||
| 4. | 01010-81675 | [6] | BOLT Komatsu | 0.15 kg. |
| ["SN: 1001-UP"] analogs:["0101051675", "0101031675", "0101061675"] | ||||
| 5. | 01643-31645 | [6] | WASHER Komatsu | 0.072 kg. |
| ["SN: 1001-UP"] analogs:["802170005", "0164301645"] | ||||
| 6. | 195-54-42560 | [6] | BOSS Komatsu | 0.163 kg. |
| ["SN: 1001-UP"] | ||||
| 7. | 17A-04-41440 | [1] | LOCK Komatsu China | |
| ["SN: 1001-UP"] | ||||
