FUEL PIPING (WITH WATER SEPARATOR AND ADDITIONAL FILTER)(#1005-) D85MS-15 S/N 1001-1005 Komatsu


OK request send
CRAWLER LOADERS
D85MS-15 S/N 1001-1005
FUEL TANK AND RELATED PARTS
FUEL PIPING (WITH WATER SEPARATOR AND ADDITIONAL FILTER)(#1001-1004)
FUEL PIPING (WITH WATER SEPARATOR AND ADDITIONAL FILTER)(#1001-1004)
090050
FUEL TANK (TUBE AND LOCK)(#1005-)
FUEL TANK (TUBE AND LOCK)(#1005-)
090040
FUEL TANK (TUBE AND LOCK)(#1001-1004)
FUEL TANK (TUBE AND LOCK)(#1001-1004)
090030

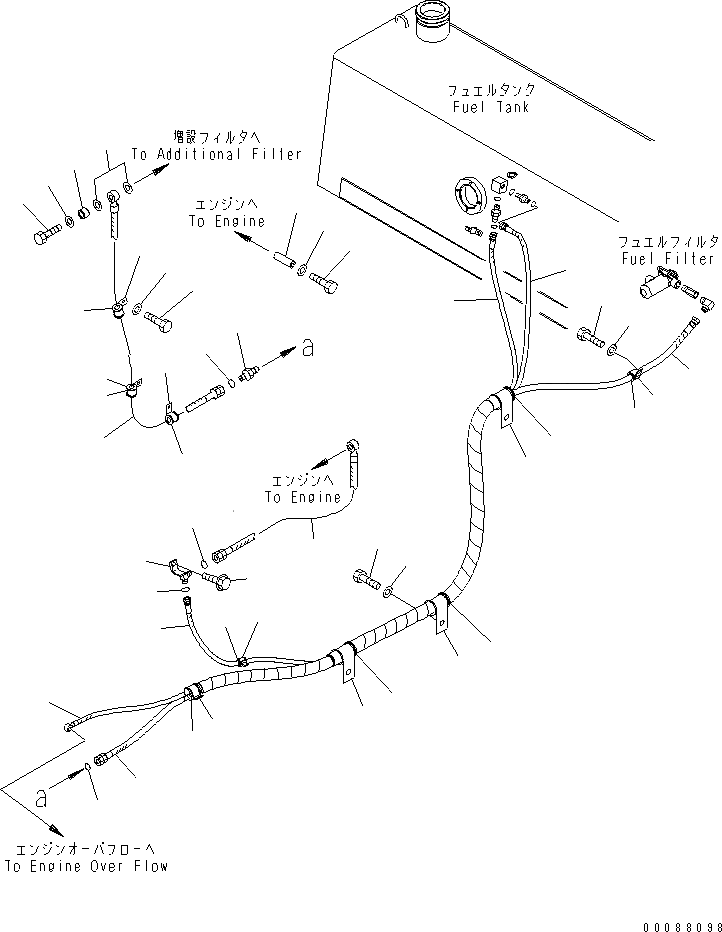

FUEL PIPING (WITH WATER SEPARATOR AND ADDITIONAL FILTER)(#1005-)

D85MS-15 S/N 1001-1005
1
1
2
2
3
3
4
4
4
4
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
24
25
25
26
27
27
28
29
30
31
32
33
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   154-04-71370   [1]   HOSE Komatsu China
    ["SN: 1001-UP"]
2.   02762-00435   [1]   HOSE Komatsu China
    ["SN: 1005-UP"]
3.   02762-00331   [1]   HOSE Komatsu China
    ["SN: 1001-UP"]
4.   21T-62-76850   [4]   CLIP Komatsu 0.38 kg.
    ["SN: 1001-UP"] analogs:["0709401024", "0709411024"]
5.   198-04-41210   [4]   CUSHION Komatsu China
    ["SN: 1001-UP"]
6.   01010-81230   [4]   BOLT Komatsu 0.043 kg.
    ["SN: 1001-UP"] analogs:["0101051230", "01010B1230"]
7.   01643-31232   [4]   WASHER Komatsu 0.027 kg.
    ["SN: 1001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
8.   04434-52712   [1]   CLIP Komatsu 0.036 kg.
    ["SN: 1001-UP"]
9.   07095-20420   [1]   CUSHION Komatsu 0.015 kg.
    ["SN: 1001-UP"]
12.   02896-11012   [1]   O-RING Komatsu China 0.17 kg.
    ["SN: 1001-UP"] analogs:["855051014"]
13.   154-04-71360   [1]   HOSE Komatsu 0.35 kg.
    ["SN: 1001-UP"]
14.   04434-52110   [1]   CLIP Komatsu 0.021 kg.
    ["SN: 1001-UP"]
15.   07095-20314   [1]   CUSHION Komatsu 0.011 kg.
    ["SN: 1001-UP"]
16.   154-04-71311   [1]   BRACKET Komatsu China
    ["SN: 1001-UP"]
17.   01436-01035   [1]   BOLT Komatsu China
    ["SN: 1001-UP"] analogs:["0143621035"]
18.   02896-11009   [2]   O-RING Komatsu China 0.01 kg.
    ["SN: 1001-UP"] analogs:["R0289611009", "0286911009"]
19.   154-04-71351   [1]   HOSE Komatsu 1.2 kg.
    ["SN: 1001-UP"]
20.   154-04-71340   [1]   NIPPLE Komatsu 0.11 kg.
    ["SN: 1001-UP"]
22.   6151-51-8490   [1]   SPACER Komatsu 0.06 kg.
    ["SN: 1001-UP"]
23.   6127-71-5710   [1]   BOLT Komatsu 0.05 kg.
    ["SN: 1001-UP"]
24.   07005-01412   [3]   GASKET Komatsu China 0.01 kg.
    ["SN: 1001-UP"] analogs:["1294807H1", "YMR001361", "YM22190140002", "6731715880"]
25.   04434-52711   [2]   CLIP Komatsu 0.03 kg.
    ["SN: 1001-UP"]
27.   07095-20419   [2]   CUSHION Komatsu 0.018 kg.
    ["SN: 1005-UP"]
29.   01010-81020   [1]   BOLT Komatsu 0.161 kg.
    ["SN: 1001-UP"] analogs:["801014093", "0101051020", "801015108"]
30.   01643-31032   [1]   WASHER Komatsu 0.054 kg.
    ["SN: 1001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
31.   01011-81210   [1]   BOLT Komatsu 0.112 kg.
    ["SN: 1001-UP"] analogs:["801015584", "0101151210"]
33.   581-60-17860   [1]   SPACER Komatsu China
    ["SN: 1001-UP"]
