WIRING (SWITCH)(#20001-) D85PX-15R S/N 20001-20002 Komatsu


OK request send
BULLDOZERS
D85PX-15R S/N 20001-20002
ELECTRICAL SYSTEM
WIRING (2/2)(#20001-)
WIRING (2/2)(#20001-)
120040
WIRING (1/2)(#20001-)
WIRING (1/2)(#20001-)
120030
BATTERY (NS150 DRY)(#20001-)
BATTERY (NS150 DRY)(#20001-)
120020
WIRING (HEATER HARNESS) (1/2)(#20001-)
WIRING (HEATER HARNESS) (1/2)(#20001-)
120060
WIRING (HEATER HARNESS) (2/2)(#20001-)
WIRING (HEATER HARNESS) (2/2)(#20001-)
120070
KOMTRAX(#20001-)
KOMTRAX(#20001-)
120080

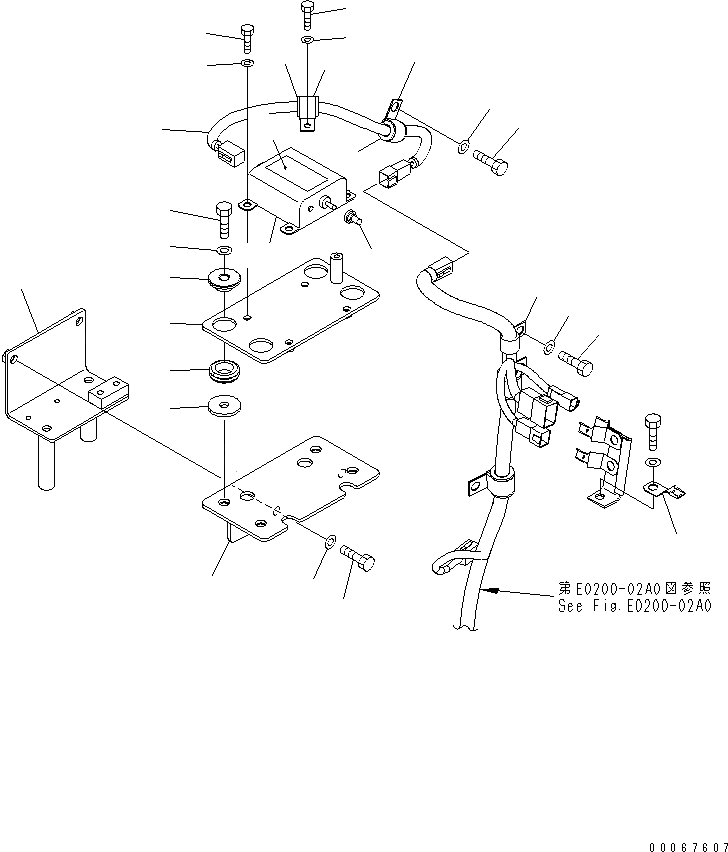

WIRING (SWITCH)(#20001-)

D85PX-15R S/N 20001-20002
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   154-06-74460   [1]   BRACKET Komatsu China
    ["SN: 20001-UP"]
2.   154-06-74470   [1]   BRACKET Komatsu China
    ["SN: 20001-UP"]
3.   01010-81025   [2]   BOLT Komatsu 0.36 kg.
    ["SN: 20001-UP"] analogs:["0101051025", "0101651025", "801015109"]
4.   01643-31032   [2]   WASHER Komatsu 0.054 kg.
    ["SN: 20001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
5.   154-06-74411   [1]   BRACKET Komatsu China
    ["SN: 20001-UP"]
6.   427-06-13240   [4]   WASHER Komatsu China
    ["SN: 20001-UP"]
7.   175-03-42140   [4]   RUBBER Komatsu 0.01 kg.
    ["SN: 20001-UP"]
8.   203-54-14330   [4]   COLLAR Komatsu China
    ["SN: 20001-UP"]
9.   01010-81240   [4]   BOLT Komatsu 0.052 kg.
    ["SN: 20001-UP"] analogs:["801015573", "0101051240"]
10.   01643-31232   [4]   WASHER Komatsu 0.027 kg.
    ["SN: 20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
11.   600-815-9471   [1]   SWITCH,TIMER Komatsu 0.85 kg.
    ["SN: 20001-UP"] analogs:["6008159470", "6008159472"]
12.   6245-81-9410   [1]   PLATE Komatsu China
    ["SN: 20001-UP"] analogs:["R6245819410"]
13.   08504-10000   [1]   CAP Komatsu China
    ["SN: 20001-UP"] analogs:["1758912281", "1758912291", "7800101110", "7800101090"]
14.   01010-80816   [4]   BOLT Komatsu 0.022 kg.
    ["SN: 20001-UP"] analogs:["0101050816", "801015084"]
15.   01643-30823   [4]   WASHER Komatsu 0.004 kg.
    ["SN: 20001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
16.   154-06-74431   [1]   WIRING HARNESS Komatsu China
    ["SN: 20001-UP"]
17.   04434-52108   [1]   CLIP Komatsu China
    ["SN: 20001-UP"]
18.   07095-20314   [1]   CUSHION Komatsu 0.011 kg.
    ["SN: 20001-UP"]
21.   04434-52112   [1]   CLIP Komatsu 0.03 kg.
    ["SN: 20001-UP"]
23.   01010-81220   [1]   BOLT Komatsu 0.032 kg.
    ["SN: 20001-UP"] analogs:["0101051220"]
25.   04434-51912   [1]   CLIP Komatsu 0.02 kg.
    ["SN: 20001-UP"]
28.   08193-21012   [1]   CLIP Komatsu 0.011 kg.
    ["SN: 20001-UP"]
