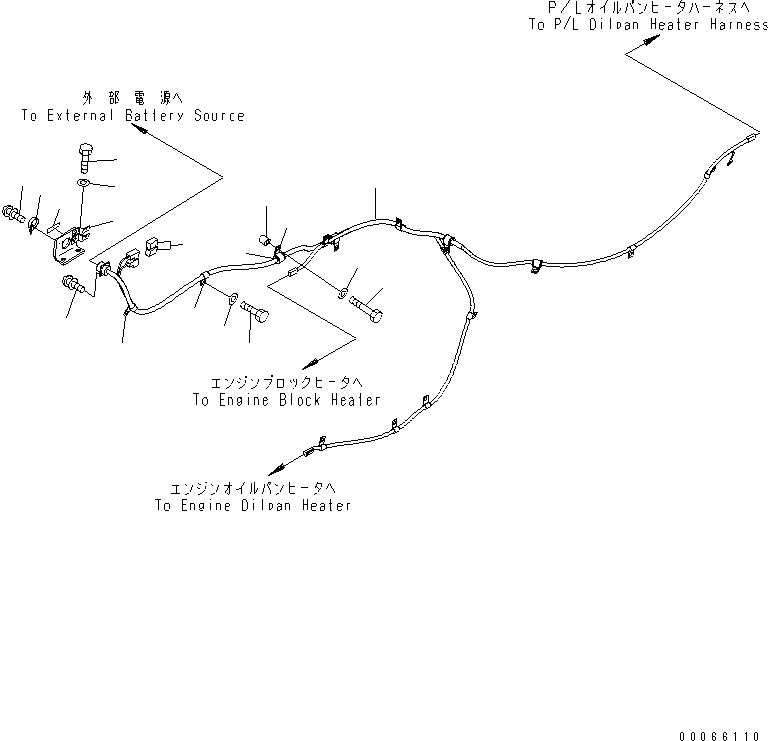

WIRING (HEATER HARNESS) (1/2)(#20001-)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 175-06-39830 | [1] | CAP Komatsu | 0.28 kg. |
| ["SN: 20001-UP"] | ||||
| 2. | 01023-10312 | [1] | SCREW Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 3. | 154-06-74340 | [1] | WIRING HARNESS Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 5. | 22U-06-11270 | [2] | FUSIBLE LINK, 65A Komatsu | 0.01 kg. |
| ["SN: 20001-UP"] | ||||
| 6. | 154-06-71511 | [1] | BRACKET Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 7. | 195-98-14780 | [1] | PLATE, CAUTION Komatsu China | |
| ["SN: 20001-UP"] | ||||
| 8. | 01010-81230 | [2] | BOLT Komatsu | 0.043 kg. |
| ["SN: 20001-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 9. | 01643-31232 | [2] | WASHER Komatsu | 0.027 kg. |
| ["SN: 20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 10. | 04434-51412 | [2] | CLIP Komatsu | 0.02 kg. |
| ["SN: 20001-UP"] | ||||
| 11. | 01010-81225 | [1] | BOLT Komatsu | 0.074 kg. |
| ["SN: 20001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 13. | 04434-52112 | [1] | CLIP Komatsu | 0.03 kg. |
| ["SN: 20001-UP"] | ||||
| 14. | 07095-20314 | [1] | CUSHION Komatsu | 0.011 kg. |
| ["SN: 20001-UP"] | ||||
| 15. | 195-33-11220 | [1] | SPACER Komatsu | 0.073 kg. |
| ["SN: 20001-UP"] | ||||
| 16. | 01010-81255 | [1] | BOLT Komatsu | 0.065 kg. |
| ["SN: 20001-UP"] analogs:["3007572X", "801014128", "0101051255"] | ||||
