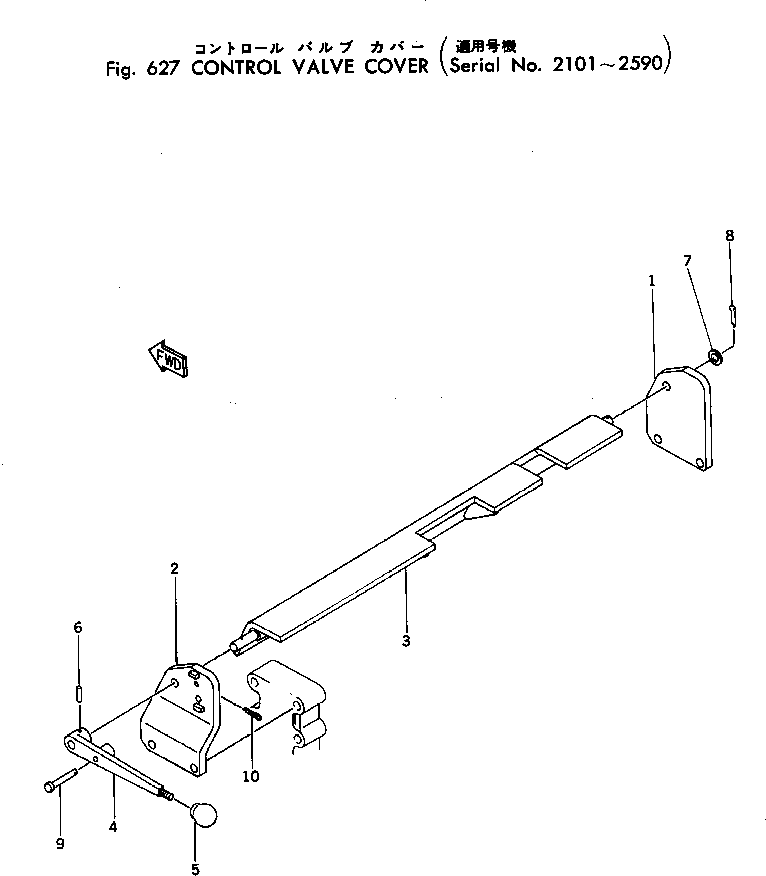

CONTROL VALVE COVER(#2101-2590)

GD37-6H S/N 2101-UP
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
     232-60-00069   [1]   VALVE ASS'Y Komatsu China
    ["SN: 2101-2590"] analogs:["2326012004"] |$0.
   1.   232-60-12412   [1]   BRACKET Komatsu China
    ["SN: 2101-2590"]
   2.   232-60-12421   [1]   BRACKET Komatsu China
    ["SN: 2101-2590"]
3.   232-60-12510   [1]   STOPPER Komatsu China
    ["SN: 2101-2590"]
4.   232-60-12520   [1]   LEVER Komatsu China
    ["SN: 2101-2590"]
5.   232-60-12260   [1]   GRIP Komatsu 0.04 kg.
    ["SN: 2101-2590"] analogs:["0930400835"]
6.   04025-00424   [1]   PIN Komatsu 0.002 kg.
    ["SN: 2101-2590"]
7.   01641-21626   [1]   WASHER Komatsu 0.01 kg.
    ["SN: 2101-2590"] analogs:["0164101626"]
8.   04050-04025   [1]   PIN Komatsu 0.003 kg.
    ["SN: 2101-2590"] analogs:["0405014025"]
9.   232-60-12540   [1]   PIN Komatsu China
    ["SN: 2101-2590"]
10.   04050-03015   [1]   PIN Komatsu 0.001 kg.
    ["SN: 2101-2590"] analogs:["0405013015"]
