CYLINDER BLOCK GASKET KIT(#26343697-) SAA6D102E-2JJ-8 S/N 26274903-UP Komatsu


OK request send
SAA6D102E-2JJ-8 S/N 26274903-UP
ENGINE
CYLINDER HEAD GASKET KIT(#26343697-)
CYLINDER HEAD GASKET KIT(#26343697-)
030760
REPAIR PARTS (4/4) (PISTON)
REPAIR PARTS (4/4) (PISTON)
030750
REPAIR PARTS (3/4) (CRANKSHAFT)
REPAIR PARTS (3/4) (CRANKSHAFT)
030740
CAUTION PLATE (JAPANESE-ENGLISH)(#26331373-)
CAUTION PLATE (JAPANESE-ENGLISH)(#26331373-)
030780
CAUTION PLATE (JAPANESE-ENGLISH)(#26343697-)
CAUTION PLATE (JAPANESE-ENGLISH)(#26343697-)
030790
HEATER SWITCH(#26302312-)
HEATER SWITCH(#26302312-)
030800

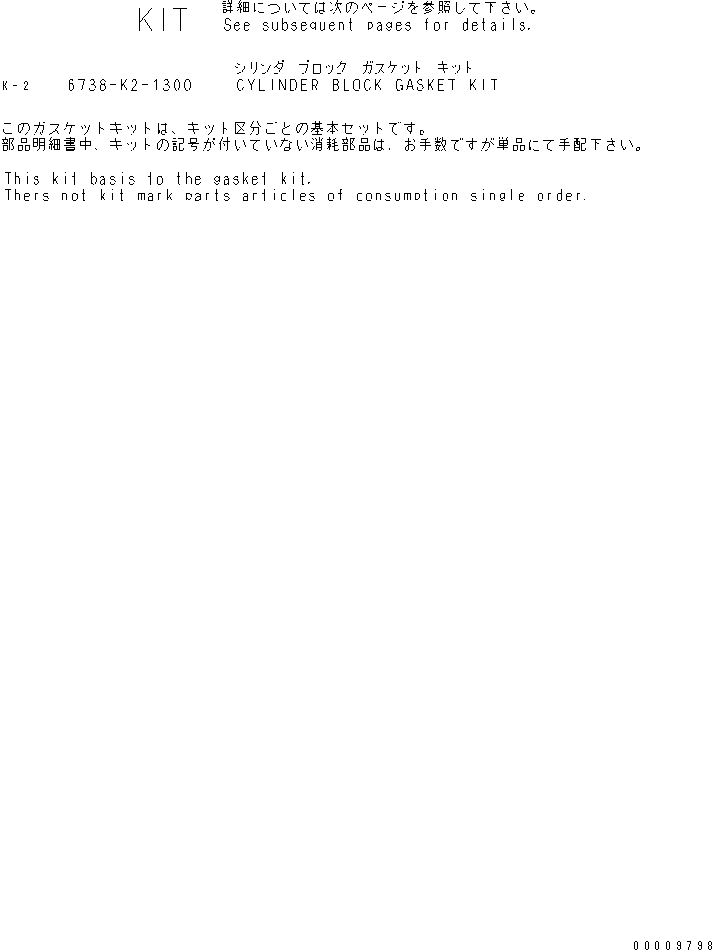

CYLINDER BLOCK GASKET KIT(#26343697-)

SAA6D102E-2JJ-8 S/N 26274903-UP
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
2.   6738-K2-1300   [1]   GASKET KIT,CYLINDER BLOCK Komatsu China
    ["SN: 26343697-UP"]
        6735-21-1960   [1]   O-RING,SPEED SENSOR Komatsu 0.001 kg.
    ["SN: 26343697-UP"] |2.
        6215-81-9710   [3]   O-RING,M10 PLUG Komatsu 0.001 kg.
    ["SN: 26343697-UP"] |2.
        6735-21-1930   [1]   O-RING,M14 PLUG Komatsu 0.001 kg.
    ["SN: 26343697-UP"] analogs:["6216849740", "6261849740", "6216546320"] |2.
        6731-21-1190   [6]   NOZZLE,COOLING NOZZLE Komatsu 0.004 kg.
    ["SN: 26343697-UP"] analogs:["6732211191"] |2.
        6732-21-3811   [1]   GASKET,GEAR CASE Komatsu Aftermarket 0.207 kg.
    ["SN: 26343697-UP"] analogs:["6732213810"] |2.
        6732-21-3870   [1]   O-RING,GEAR CASE Komatsu 0.001 kg.
    ["SN: 26343697-UP"] |2.
        6732-21-3880   [1]   GASKET,GEAR HOUSING Komatsu 0.001 kg.
    ["SN: 26343697-UP"] |2.
        6736-21-3450   [1]   GASKET,FRONT COVER Komatsu Aftermarket 0.062 kg.
    ["SN: 26343697-UP"] |2.
        6732-11-8210   [6]   GASKET,PUSH ROD COVER BOLT Komatsu China 0.002 kg.
    ["SN: 26343697-UP"] analogs:["6735118810"] |2.
        6738-21-6180   [1]   O-RING,PUSH ROD COVER Komatsu China 0.044 kg.
    ["SN: 26343697-UP"] |2.
        07000-72110   [1]   O-RING,PTO COVER Komatsu China 0.004 kg.
    ["SN: 26343697-UP"] analogs:["0700062110", "R0700072110"] |2.
        6732-21-3380   [2]   GASKET,PTO HOUSING Komatsu 0.03 kg.
    ["SN: 26343697-UP"] analogs:["1244723H1", "6732819130"] |2.
        6732-21-3220   [1]   SEAL,FRONT COVER Komatsu 0.02 kg.
    ["SN: 26343697-UP"] |2.
        6735-21-4191   [1]   GASKET,REAR COVER Komatsu China 0.015 kg.
    ["SN: 26343697-UP"] analogs:["6735214190"] |2.
        6736-21-4220   [1]   SEAL,REAR SEAL KIT (DOUBLE) Komatsu OEM 0.28 kg.
    ["SN: 26343697-UP"] analogs:["6732211310", "6732211311", "6736214221"] |2.
        6732-21-4171   [1]   GASKET,REAR COVER Komatsu China 0.013 kg.
    ["SN: 26343697-UP"] analogs:["6732214170"] |2.
        6732-21-4161   [1]   O-RING,BEARING CAP Komatsu 0.001 kg.
    ["SN: 26343697-UP"] analogs:["6732214160"] |2.
        07005-01012   [7]   GASKET,INJECTION PUMP OIL PIPING Komatsu China 0.001 kg.
    ["SN: 26343697-UP"] analogs:["YM22190100002", "6731715860"] |2.
        6735-61-6411   [1]   GASKET Komatsu China 0.01 kg.
    ["SN: 26343697-UP"] |2.
        6732-51-4432   [1]   GASKET,OIL PRESSURE PLUG Komatsu 0.072 kg.
    ["SN: 26343697-UP"] analogs:["6732514430", "6732514431"] |2.
        6732-61-2311   [1]   GASKET,OIL COOLER CORE Komatsu China 0.078 kg.
    ["SN: 26343697-UP"] analogs:["6732612310", "6732612312"] |2.
        07005-02216   [1]   GASKET,OIL PAN DRAIN Komatsu 0.01 kg.
    ["SN: 26343697-UP"] analogs:["YM22190220002"] |2.
        07005-02416   [1]   GASKET,OIL PAN DRAIN Komatsu 0.005 kg.
    ["SN: 26343697-UP"] |2.
        6732-81-6811   [1]   GASKET,STARTER Komatsu 0.01 kg.
    ["SN: 26343697-UP"] |2.
        6732-61-6130   [1]   SEAL,WATER INLET CONNECTION Komatsu 0.006 kg.
    ["SN: 26343697-UP"] analogs:["6732616131"] |2.
        6736-61-1520   [1]   SEAL,WATER PUMP Komatsu China 0.02 kg.
    ["SN: 26343697-UP"] |2.
        6731-21-4220   [1]   SEAL,FRONT SEAL KIT Komatsu China 0.11 kg.
    ["SN: 26343697-UP"] analogs:["6732213511", "6735213510", "6735213511"] |2.
        6738-21-6650   [1]   GASKET,PUSH ROD COVER Komatsu China 0.112 kg.
    ["SN: 26343697-UP"] |2.
        6738-21-6660   [8]   GASKET,PUSH ROD COVER BOLT Komatsu 0.002 kg.
    ["SN: 26343697-UP"] |2.
        6733-21-5520   [1]   GASKET,SUCTION TUBE Komatsu 0.05 kg.
    ["SN: 26343697-UP"] analogs:["1261672H1", "6732215510"] |2.
        6732-51-8330   [1]   O-RING,TURBOCHARGER DRAIN Komatsu 0.001 kg.
    ["SN: 26343697-UP"] analogs:["R6732518330"] |2.
     6136-21-5870   [1]   GASKET Komatsu 0.004 kg.
    ["SN: 26343697-UP"] |2.
     6732-21-5510   [1]   GASKET Komatsu 0.05 kg.
    ["SN: 26343697-UP"] analogs:["6733215520", "1261672H1"] |2.
     6731-21-8710   [1]   SEAL,DUST Komatsu China
    ["SN: 26343697-UP"] |2.
     6731-51-8150   [1]   O-RING Komatsu 0.001 kg.
    ["SN: 26343697-UP"] |2.
     6735-21-3511   [1]   SEAL Komatsu China 0.11 kg.
    ["SN: 26343697-UP"] analogs:["6731214220", "6732213511", "6735213510"] |2.
     6735-K2-3001   [1]   SEAL Komatsu 0.01 kg.
    ["SN: 26343697-UP"] analogs:["CU4089342", "6732214260", "6735K23000", "6735K23010"] |2.
