ROTOR LIFT LINE (ROTOR LINE) (1/3)(#1001-) D85MS-15 S/N 1001-1005 Komatsu


OK request send
CRAWLER LOADERS
D85MS-15 S/N 1001-1005
HYDRAULIC SYSTEM
ROTOR LIFT LINE (ROTOR LIFT CYLINDER TUBE)(#1001-)
ROTOR LIFT LINE (ROTOR LIFT CYLINDER TUBE)(#1001-)
180040
ROTOR LIFT LINE (ROTOR LIFT TUBE)(#1001-)
ROTOR LIFT LINE (ROTOR LIFT TUBE)(#1001-)
180030
ROTOR LIFT LINE (ROTOR LIFT PIPING)(#1001-)
ROTOR LIFT LINE (ROTOR LIFT PIPING)(#1001-)
180020
ROTOR LIFT LINE (ROTOR LINE) (2/3)(#1001-)
ROTOR LIFT LINE (ROTOR LINE) (2/3)(#1001-)
180060
ROTOR LIFT LINE (ROTOR LINE) (3/3)(#1001-)
ROTOR LIFT LINE (ROTOR LINE) (3/3)(#1001-)
180070
ROTOR LIFT LINE (DRAIN LINE)(#1001-)
ROTOR LIFT LINE (DRAIN LINE)(#1001-)
180080

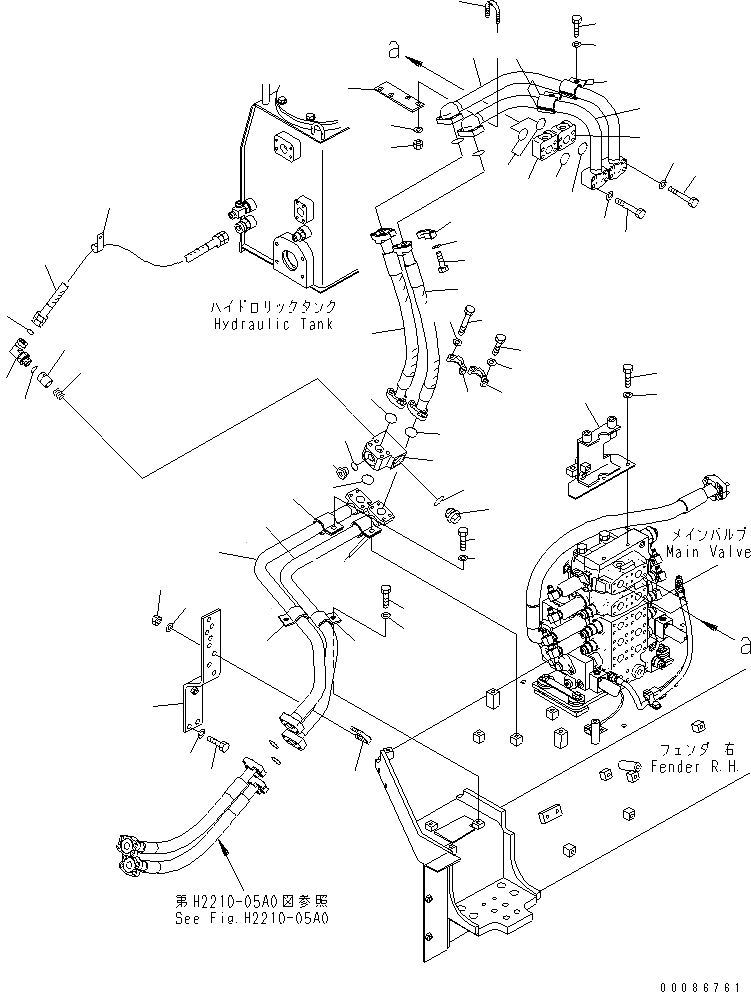

ROTOR LIFT LINE (ROTOR LINE) (1/3)(#1001-)

D85MS-15 S/N 1001-1005
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
23
24
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
43
44
45
46
46
47
48
49
50
51
52
53
54
  For full view, you need register

Parts on group :

Pos. Part No Qty Parts name Comments
1.   154-969-3440   [2]   BLOCK Komatsu China
    ["SN: 1001-UP"]
2.   07000-13035   [2]   O-RING Komatsu China 0.03 kg.
    ["SN: 1001-UP"] analogs:["0700003035"]
3.   154-969-3111   [1]   TUBE Komatsu China
    ["SN: 1001-UP"]
5.   22W-61-18270   [4]   BOLT Komatsu China
    ["SN: 1001-UP"]
6.   01641-01016   [4]   WASHER Komatsu 0.002 kg.
    ["SN: 1001-UP"] analogs:["0164121016"]
7.   154-969-3181   [1]   TUBE Komatsu China
    ["SN: 1001-UP"]
11.   154-969-3233   [1]   BRACKET Komatsu China
    ["SN: 1001-UP"]
12.   01010-80820   [2]   BOLT Komatsu 0.013 kg.
    ["SN: 1001-UP"] analogs:["801014067", "0101050820", "801015086"]
13.   01643-30823   [2]   WASHER Komatsu 0.004 kg.
    ["SN: 1001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
14.   150-49-11630   [4]   CLAMP Komatsu China
    ["SN: 1001-UP"]
15.   01010-81230   [2]   BOLT Komatsu 0.043 kg.
    ["SN: 1001-UP"] analogs:["0101051230", "01010B1230"]
16.   01643-31232   [2]   WASHER Komatsu 0.027 kg.
    ["SN: 1001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
17.   154-969-3280   [1]   PLATE Komatsu China
    ["SN: 1001-UP"]
18.   07283-33442   [2]   CLIP Komatsu 0.094 kg.
    ["SN: 1001-UP"]
19.   01597-01009   [4]   NUT Komatsu 0.011 kg.
    ["SN: 1001-UP"]
20.   01643-31032   [4]   WASHER Komatsu 0.054 kg.
    ["SN: 1001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
21.   07099-01006   [1]   HOSE Komatsu China
    ["SN: 1001-UP"]
22.   07099-010A5   [1]   HOSE Komatsu China
    ["SN: 1001-UP"]
23.   07000-13032   [4]   O-RING Komatsu China 0.002 kg.
    ["SN: 1001-UP"] analogs:["YM24321000350", "YM24311000320", "0700003032"]
24.   07371-31049   [8]   FLANGE Komatsu 0.12 kg.
    ["SN: 1001-UP"] analogs:["0737121049"]
25.   07372-21035   [12]   BOLT Komatsu 0.033 kg.
    ["SN: 1001-UP"]
26.   01643-51032   [12]   WASHER Komatsu 0.17 kg.
    ["SN: 1001-UP"] analogs:["R0164351032"]
27.   154-969-3141   [1]   TUBE Komatsu China
    ["SN: 1001-UP"]
28.   154-969-3152   [1]   TUBE Komatsu China
    ["SN: 1001-UP"]
     154-969-3901   [1]   VALVE ASS'Y Komatsu China
    ["SN: 1001-UP"] |$43.
   30.   154-969-3920   [1]   VALVE Komatsu China
    ["SN: 1001-UP"]
   31.   706-75-74540   [1]   VALVE Komatsu 0.134 kg.
    ["SN: 1001-UP"]
   32.   706-75-74550   [1]   SPRING Komatsu 0.012 kg.
    ["SN: 1001-UP"]
   33.   706-75-74850   [1]   PLUG Komatsu China
    ["SN: 1001-UP"]
   34.   02782-10628   [1]   ELBOW Komatsu 0.36 kg.
    ["SN: 1001-UP"]
   35.   07040-12412   [1]   PLUG Komatsu 0.092 kg.
    ["SN: 1001-UP"] analogs:["0704012414", "0704002412", "R0704012412"]
   36.   07002-63334   [1]   O-RING Komatsu 1.46 kg.
    ["SN: 1001-UP"]
   37.   07002-62434   [2]   O-RING Komatsu 0.001 kg.
    ["SN: 1001-UP"] analogs:["7081W28910"]
38.   205-62-74740   [4]   BOLT Komatsu 0.07 kg.
    ["SN: 1001-UP"]
40.   02762-00609   [1]   HOSE Komatsu China 1.22 kg.
    ["SN: 1001-UP"]
41.   02896-11018   [1]   O-RING Komatsu 0.24 kg.
    ["SN: 1001-UP"] analogs:["855051018", "R0289611018"]
42.   04434-52712   [1]   CLIP Komatsu 0.036 kg.
    ["SN: 1001-UP"]
46.   154-969-7430   [2]   CLAMP Komatsu China
    ["SN: 1001-UP"]
47.   01010-81220   [2]   BOLT Komatsu 0.032 kg.
    ["SN: 1001-UP"] analogs:["0101051220"]
49.   154-969-3261   [1]   BRACKET Komatsu China
    ["SN: 1001-UP"]
